Part 3

Handsfree, bluetooth

Equipment




Turn once.
Tear off the excess foam tape.

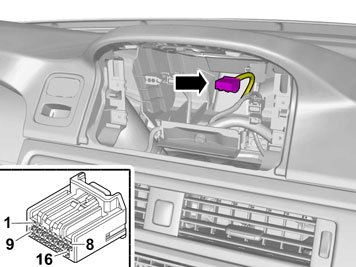

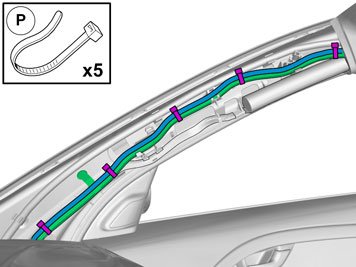

Locate the existing connector in the vehicle's cable harness.




Release the connector's secondary lock.
Lift approximately 2 mm.




Connect the cable harness.
Depress the secondary lock.

Removal

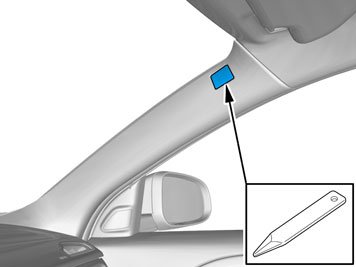

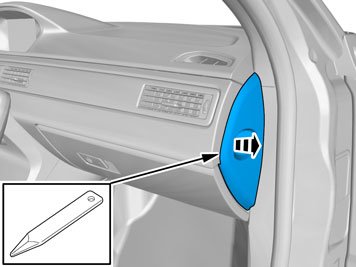

Remove the panel.

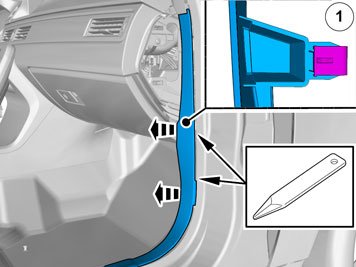

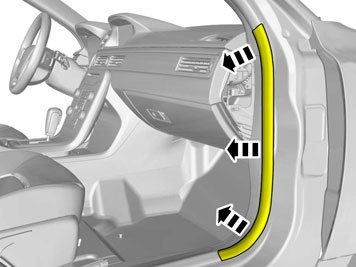

Remove the weatherstrip.





Caution! The front and upper sill panel must be removed and installed as one unit.




























Repeat on the other side.




Repeat on the other side.

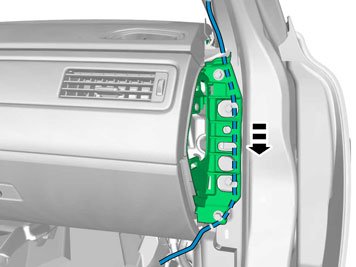

Remove the screws.








Disconnect the connector.








Deburr edges




Remove the screws.








Tear off the excess foam tape.
















Turn once.
Tear off the excess foam tape.
























Reinstall the screws.

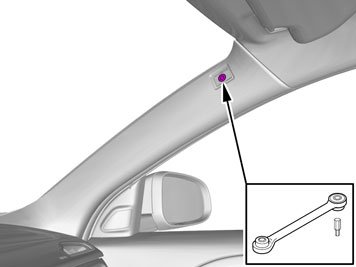

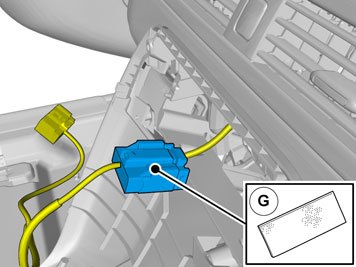

Note! The microphone must be directed towards the driver.









Installation













Installation








Fold the carpet to the side.

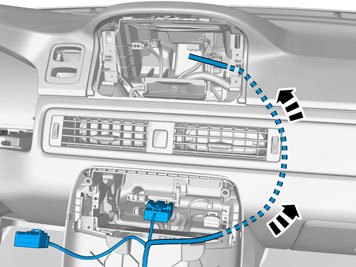

Disconnect the connector.




Connect the cable harness.








Tear off the excess foam tape.
















Fold the carpet to the side.

Left hand drive vehicles








Torque: M6, 10 Nm

Right-hand drive vehicles




The part(s) are not to be reused.




Install component that comes with the accessory kit.
Torque: M6, 10 Nm
