Part 2

Handsfree, bluetooth

All vehicles

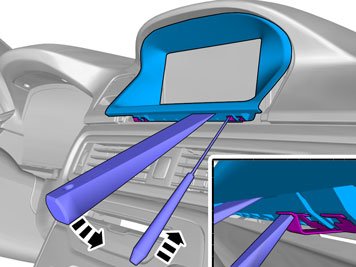

Caution! Be careful not to damage the catches.

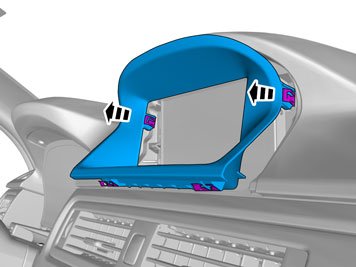

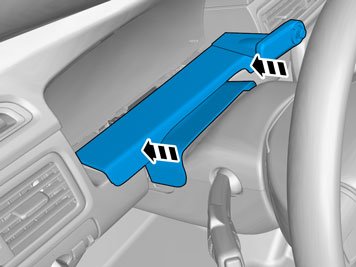

Remove the panel.




Remove the screws.

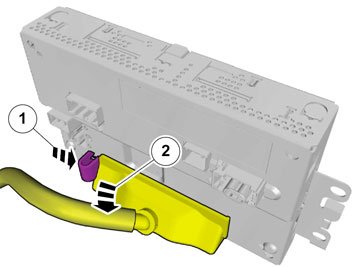

Disconnect the connectors.




















Disconnect the connectors.





















Installation

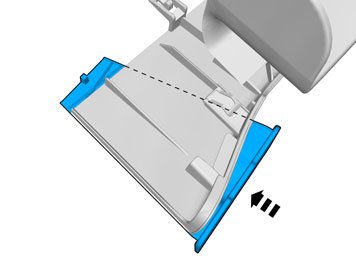

Install component that comes with the accessory kit.












Repeat on the other side.

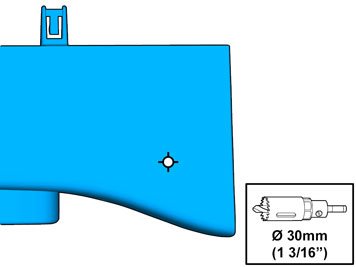

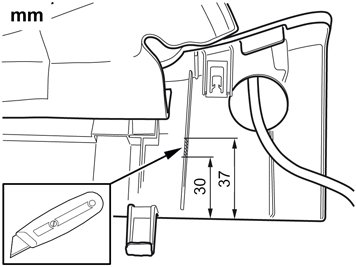

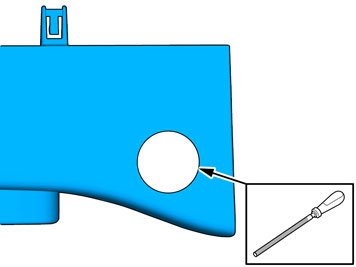

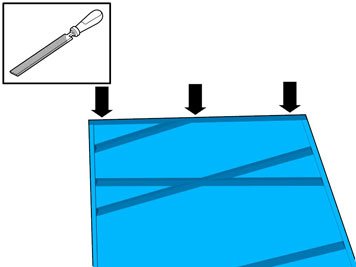

Deburr the hole edges.




Repeat on the other side.

Left hand drive vehicles








Remove the protective film.





Right-hand drive vehicles








Remove the protective film.





All vehicles

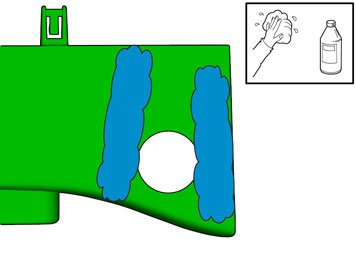

Clean the surface.

Use: Isopropanol, 1161721

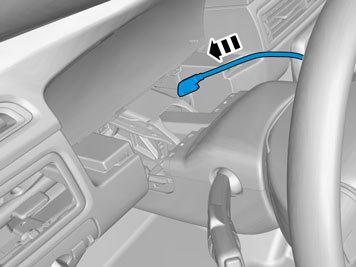

Install component that comes with the accessory kit.

Use: Isopropanol, 1161721

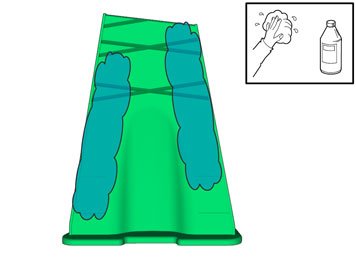

Clean the surfaces.

Use: Isopropanol, 1161721

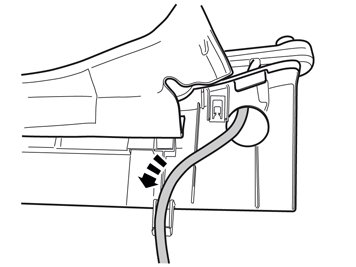

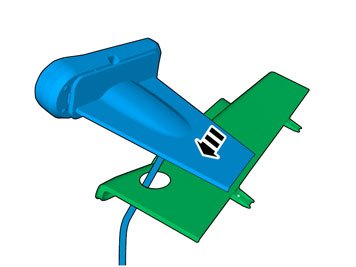

Install component that comes with the accessory kit.








Clean the surface.

Use: Isopropanol, 1161721

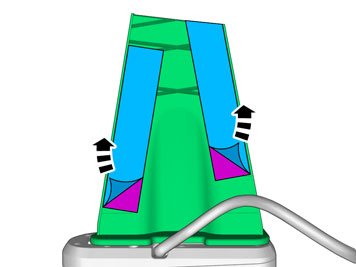

Remove the protective film.
















Clean the surfaces.

Use: Isopropanol, 1161721




Remove the protective film.








































Remove the protective film.

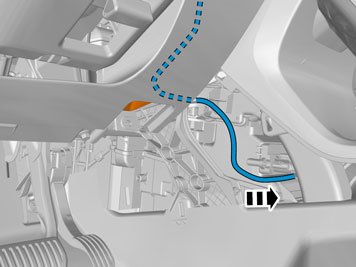

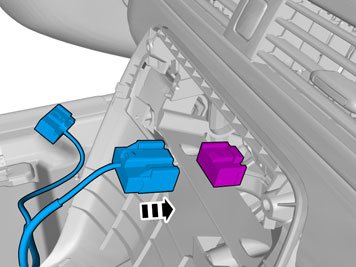

Locate the existing connector in the vehicle's cable harness.

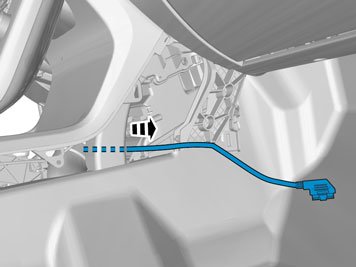

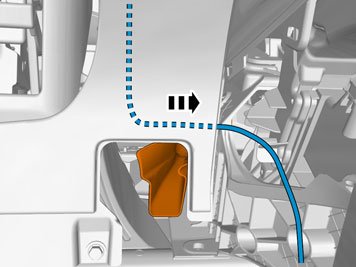

Connect the cable harness.
