Part 1

Handsfree, bluetooth

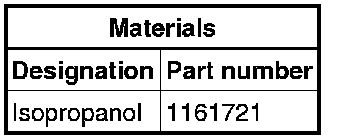

Equipment

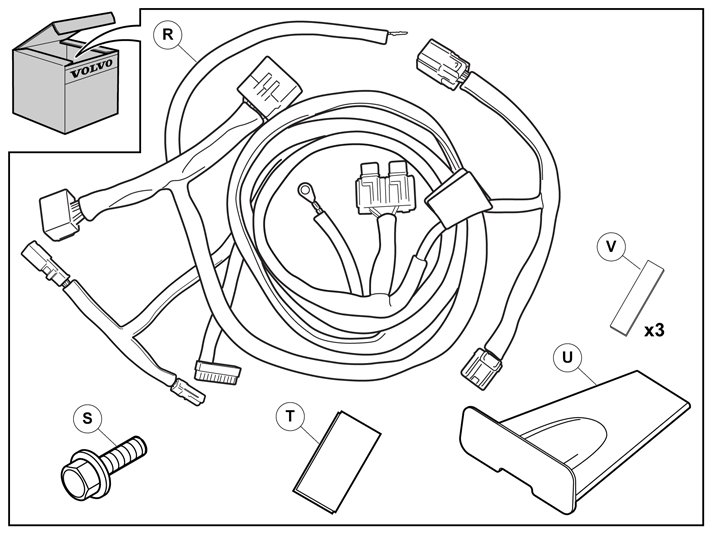

Kit contents













Operation number: 253






Information

- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.

Conditions

These installation instructions show installation on left hand drive cars.
When installing on right-hand drive cars, perform the procedures on the opposite side and/or mirrored.
Where the procedure differs, the right-hand version is also shown with text and image.
When installing, the car must retain a temperature of 20 degrees C.
Place the manual for this accessory in a suitable location in the car.

Removal








Torque: Front seat to body, 40 Nm








Torque: Front seat to body, 40 Nm




Set the ignition key to position 0.




Remove the panel.




Fold the carpet to the side.




Unhook the cable harness clips.
Disconnect the connector.




Remove the panel.












Remove the screws.




Remove the screws.

Cars with manual transmissions




Release the lock ring which is located inside the gear lever boot.





Cars with automatic transmissions








Release the shift-lock function.
