Power Steering Pump: Service and Repair

Operation number: 64518-2

Power steering pump

Removal

Note! Removal steps in this procedure may contain installation details.

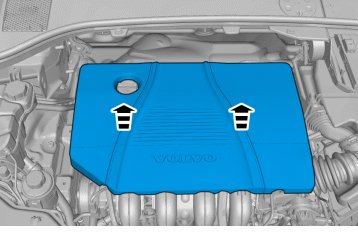

Remove the auxiliaries belt Refer to: Accessory Drive Belt, B5254T5 Service and Repair

Remove reservoir fluid power steering Refer to: Reservoir fluid power steering, B6304T4, TF-80SC AWD, B5254T5, TF-80SC Service and Repair

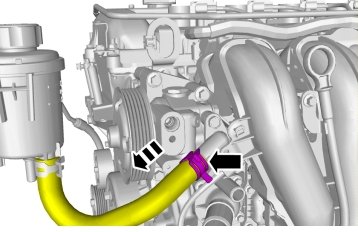

Warning! Be prepared to collect escaping fluid.

Caution! Make sure that all openings are sealed. Use new blanking caps.

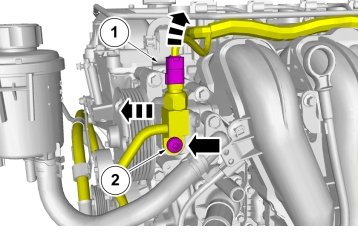

Torque: M8, 24 Nm





Warning! Be prepared to collect escaping fluid.

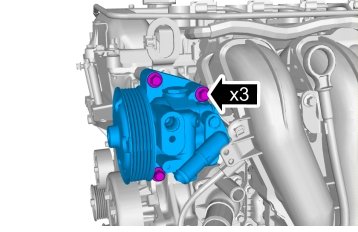

Torque: M8, 24 Nm

Installation

To install, reverse the removal procedure.

Perform power steering system, bleeding air Refer to: Power steering system, bleeding, B6304T4, B5254T5 Service and Repair
