General Data

Engine

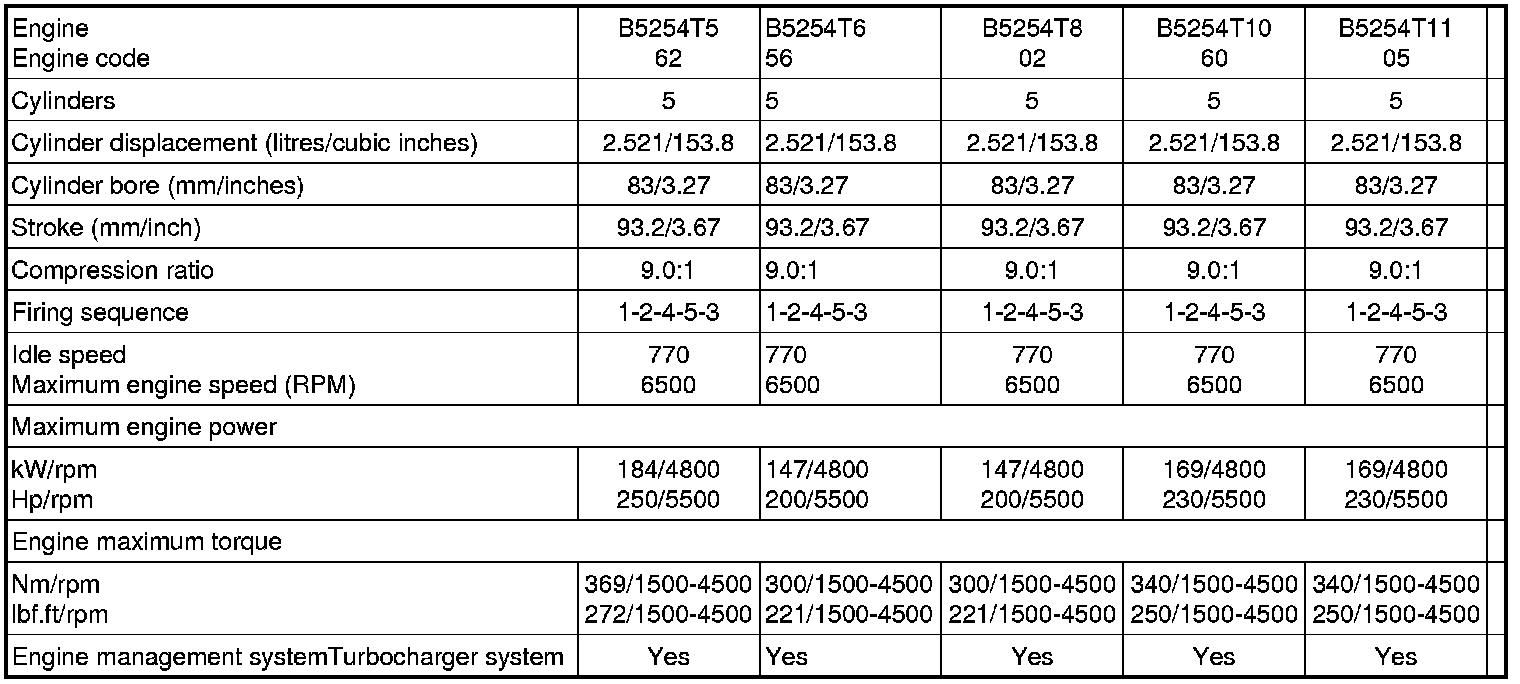

Engine specifications

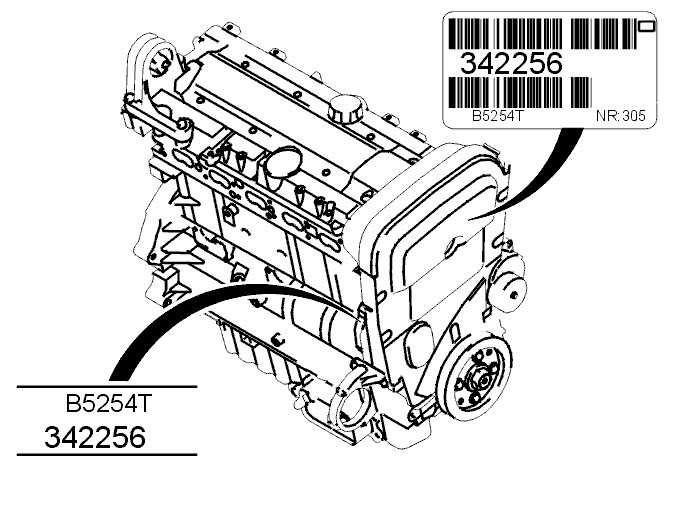

Engine manufacture number, engine serial number and type




The engine serial number and type are stamped on the left side of the cylinder block at the top of the mounting for the water pump.
There is also a decal on the timing casing with the engine type, manufacturing number, and serial number.

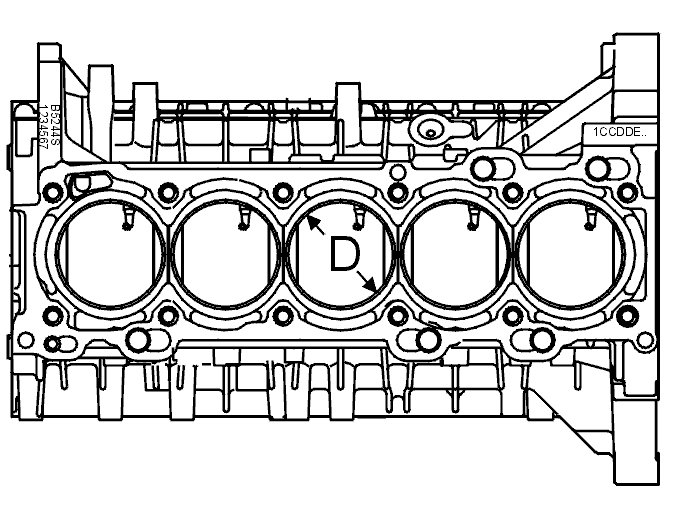

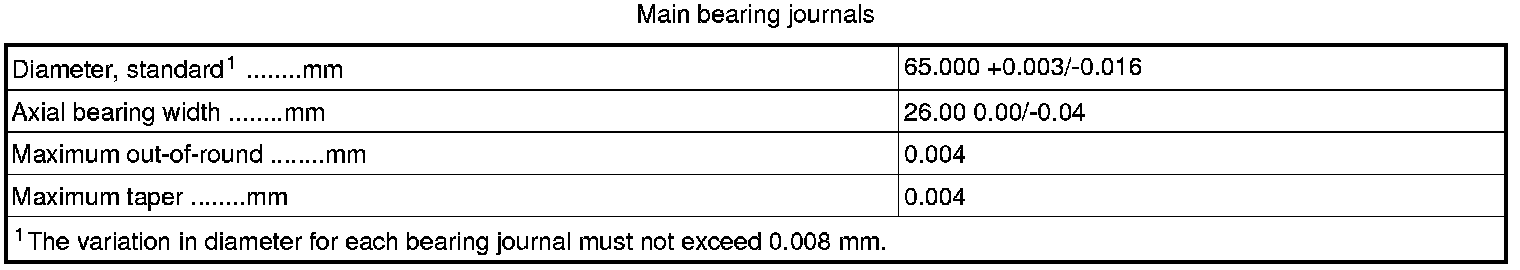

Classification of main bearings
The marking is stamped in the engine block and crankshaft. The classification marking is in the engine block above the oil cooler and crankshaft. The classification shall be read from the digit 1 to 7.
The first letter after the digit 1 is the classification of main bearing 1. The bearing positions are numbered starting at the engine's leading edge.




1. Classification cylinder block
2. Classification crankshaft
3. Cylinder block
4. Intermediate section

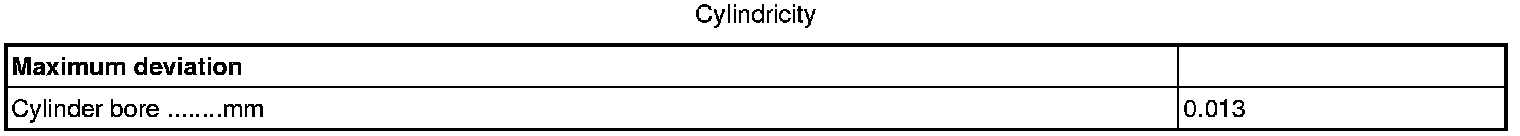

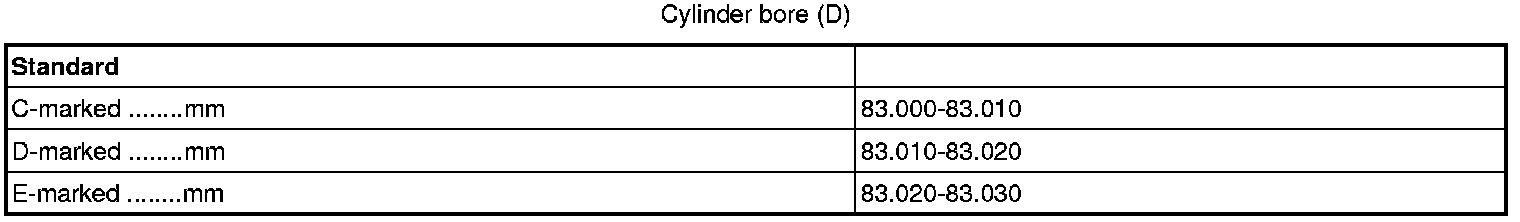

Cylinder block
















Cooling duct engine block

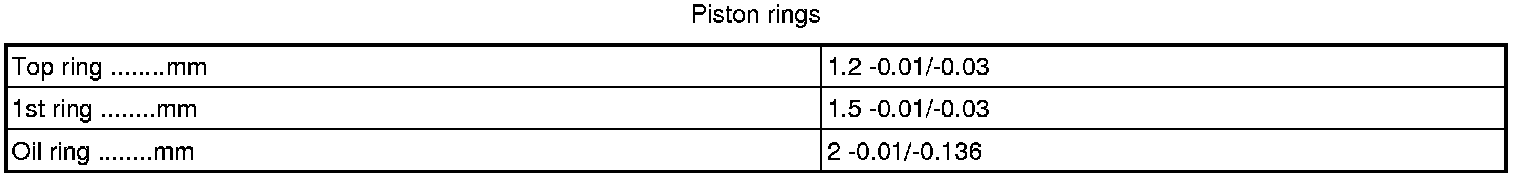

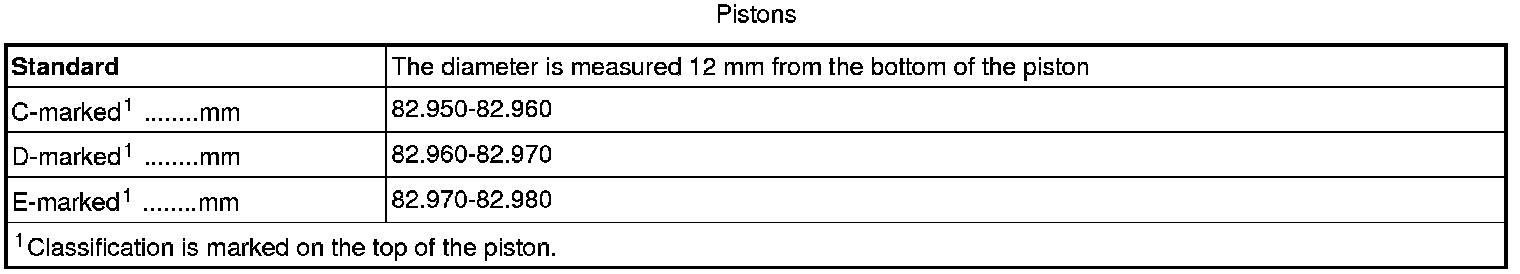

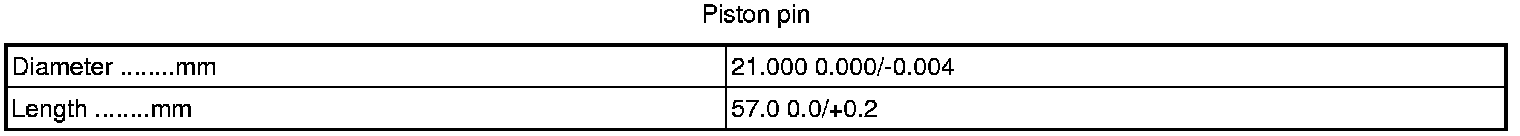

Pistons

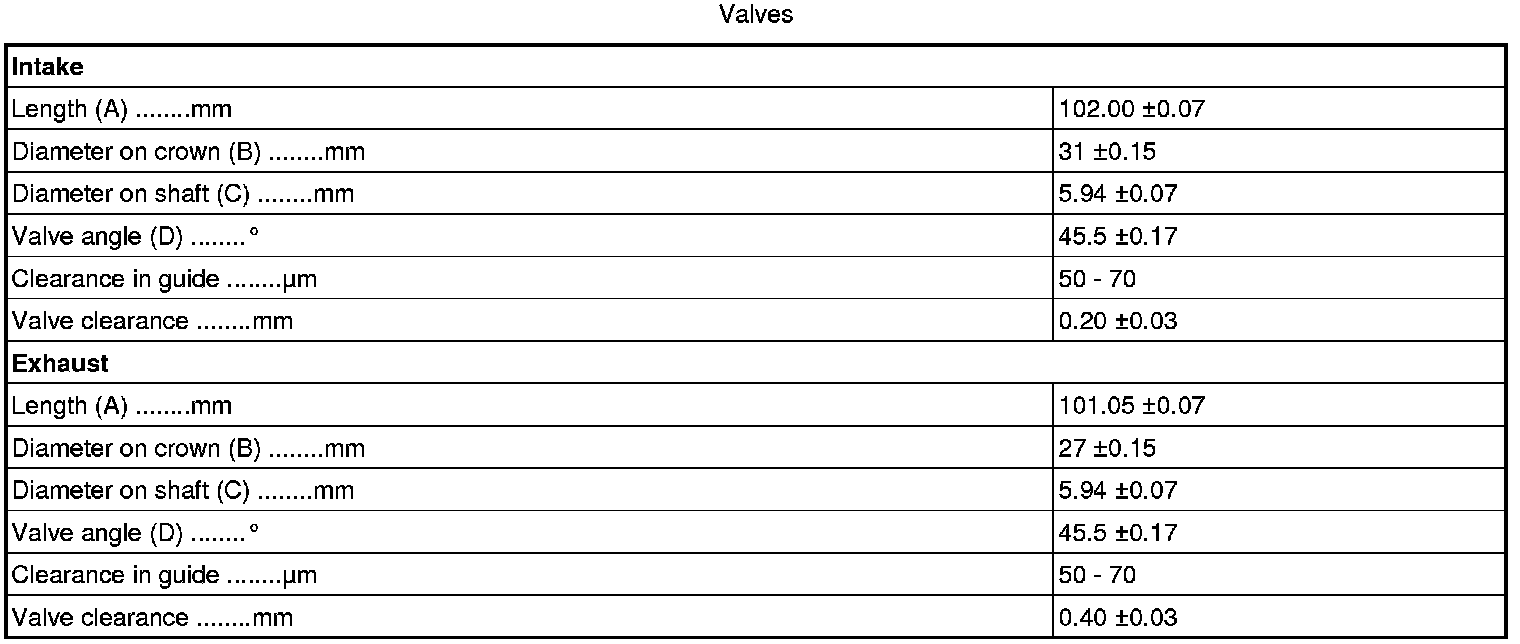

Valves

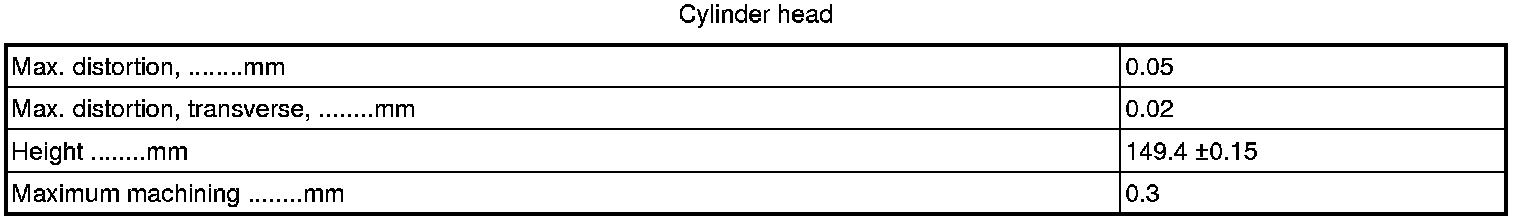

Cylinder head




































Fuel line pressure
