Recall 240 - ECM Calibration ID Missing

Title Recall 240: ECM Calibration ID Missing

Ref No US24452.1.0 en-GB

Issuer -

Partner US 7510 Volvo Cars North America

Func Group 2800 Func Desc ignition and control systems

Status Released

Status Date 2011-05-06

Issue Date 2011-03-09

Reference SMB 28-240, PB 28-240

Attachment





Vehicle Type





CSC

DTC

Text
CSC = Customer Symptom Code
DTC = Diagnostic Trouble Code

Note!
If using a printed copy of this Technical Journal, first check for the latest online version.

DESCRIPTION:

Volvo Cars of North America LLC (Volvo) has decided that a defect exists in certain model year 2012 S60 T5 vehicles equipped with automatic transmissions.

Volvo has determined that an independent repair facility will not be able to read out calibration ID data from the Engine Control Module (ECM) with a scan tool. Vehicles may also fail a state emissions test as a result of this defect.

PRODUCT MODIFICATION:

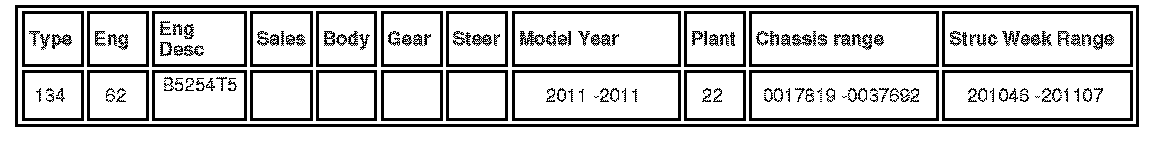

A new ECM SW has been developed. Vehicles built after the chassis range in the header have this SW from the factory. This SW will allow the independent scan tools to communicate with the ECM in order to read the SW part numbers.

SERVICE:

Perform an ECM Upgrade according to VIDA.
