Variable Valve Timing Actuator: Service and Repair

Operation number: 21557-2

VVT unit






Removal

Remove the following items:
- timing belt Refer to: Timing belt, B5254T5 Service and Repair
- starter motor Refer to: Starter motor, B5254T5 Service and Repair

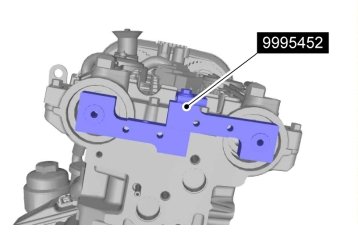

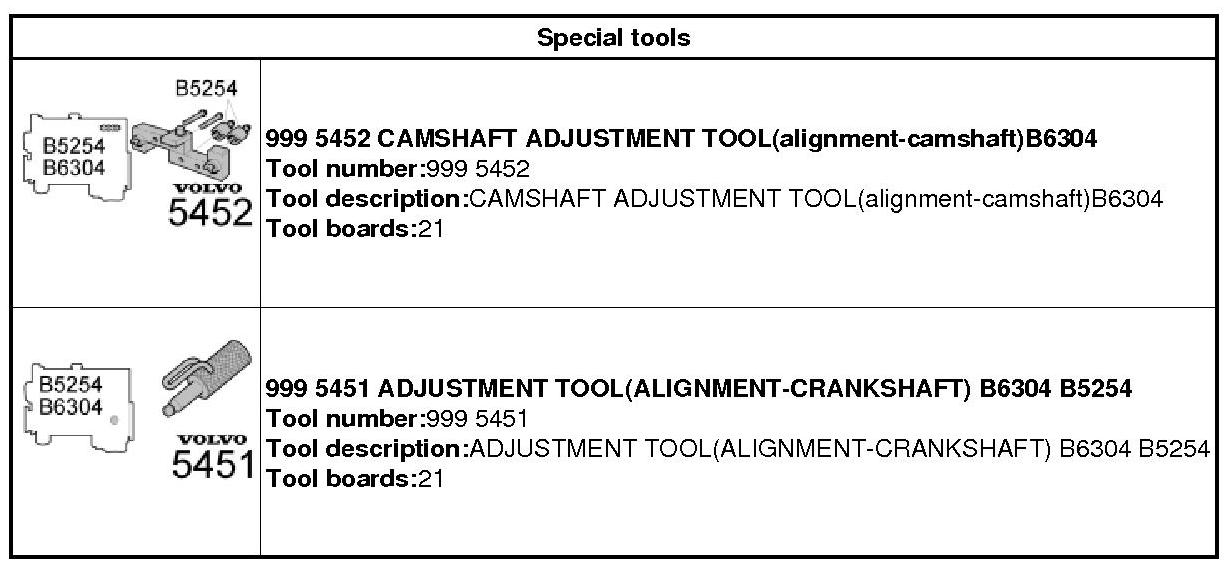

999 5452 CAMSHAFT ADJUSTMENT TOOL 999 5452 Camshaft Adjustment Tool





Installation





Note! Only tighten the bolts finger tight at this stage.




999 5451 ADJUSTMENT TOOL 999 5451 Adjustment Tool

Install timing belt Refer to: Timing belt, B5254T5 Service and Repair




Torque: VVT unit, center screw, 120 Nm








1. Torque: M10, 50 Nm

2. Torque: M6, 10 Nm




Torque: M6, 10 Nm

Install the following items:
- starter motor Refer to: Starter motor, B5254T5 Service and Repair
- timing belt Refer to: Timing belt, B5254T5 Service and Repair
