Engine, Removal

Operation number: 21040-2

Engine, removal

Removal

Perform depressurizing fuel system

Perform cooling system draining, charging and bleeding Refer to: Cooling system - draining, charging and bleeding, B6304T4, B5254T5 Service and Repair

Remove the following items:
- Plenum chamber Refer to: Plenum chamber Service and Repair
- Oxygen sensor (Catalyst monitor sensor) Refer to: Oxygen sensor (Catalyst monitor sensor), B5254T5 Service and Repair
- air cleaner (ACL) housing Refer to: Air cleaner housing, B5254T5 Service and Repair
- battery
- the auxiliaries belt

Remove the following items:
- the catalytic converter Refer to: Catalytic converter, B5254T5, TF-80SC Service and Repair
- Driveshaft left
- Drive shaft right
- Lower torque rod
- Temperature and manifold absolute pressure sensor (MAPT) Refer to: Temperature and manifold absolute pressure sensor (MAPT), B5254T5 Service and Repair

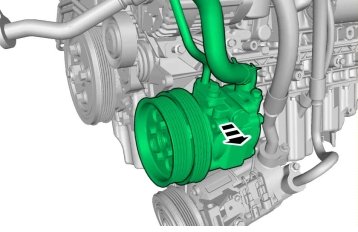

Warning! Be prepared to collect escaping fluid.

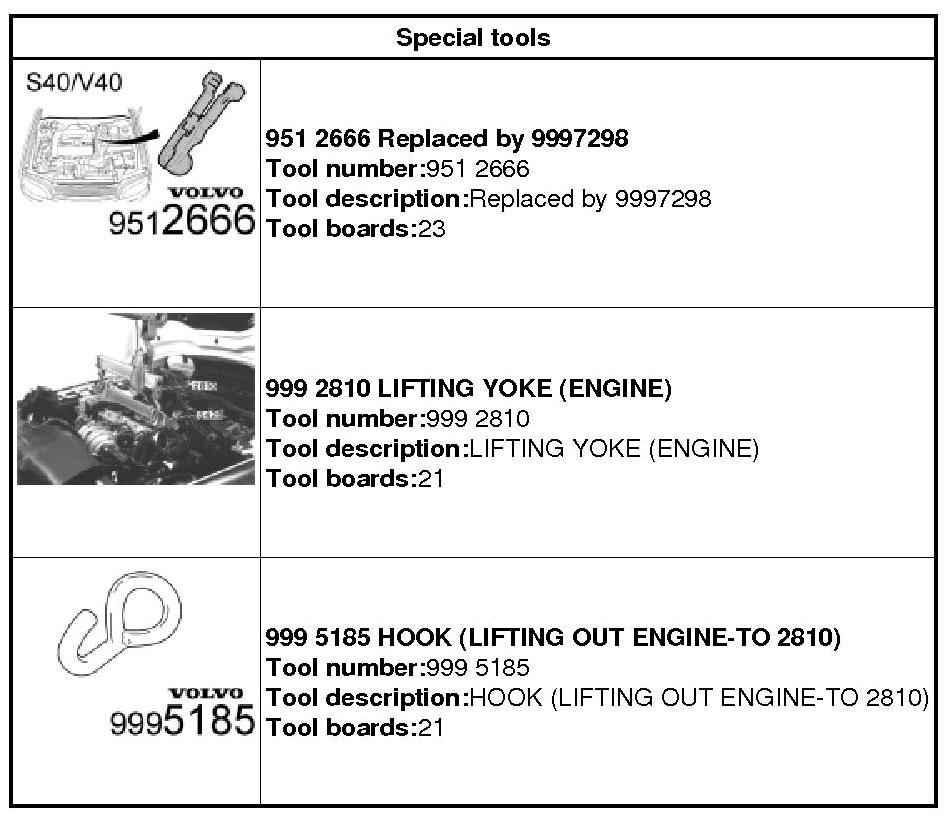

951 2666 Replaced by 9997298 951 2666 Replaced By 9997298

Warning! Be prepared to collect escaping fluid.

Caution! Note the position of the components before removal.

Note! Make sure that no components catch.

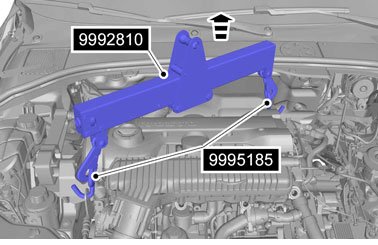

999 2810 LIFTING YOKE 999 2810 Lifting Yoke 999 5185 HOOK 999 5185 Hook

Remove the following items:
- Engine support insulator, right
- Engine support insulator left Refer to: Engine support insulator left, B6304T4, TF-80SC AWD, B5254T5, TF-80SC Engine Support Insulator Left
