Engine, Installing

Operation number: 21040-2

Engine, installing






Installation





Caution! Take extra care when handling the components.

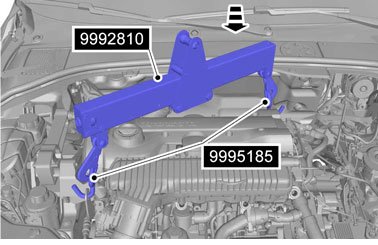

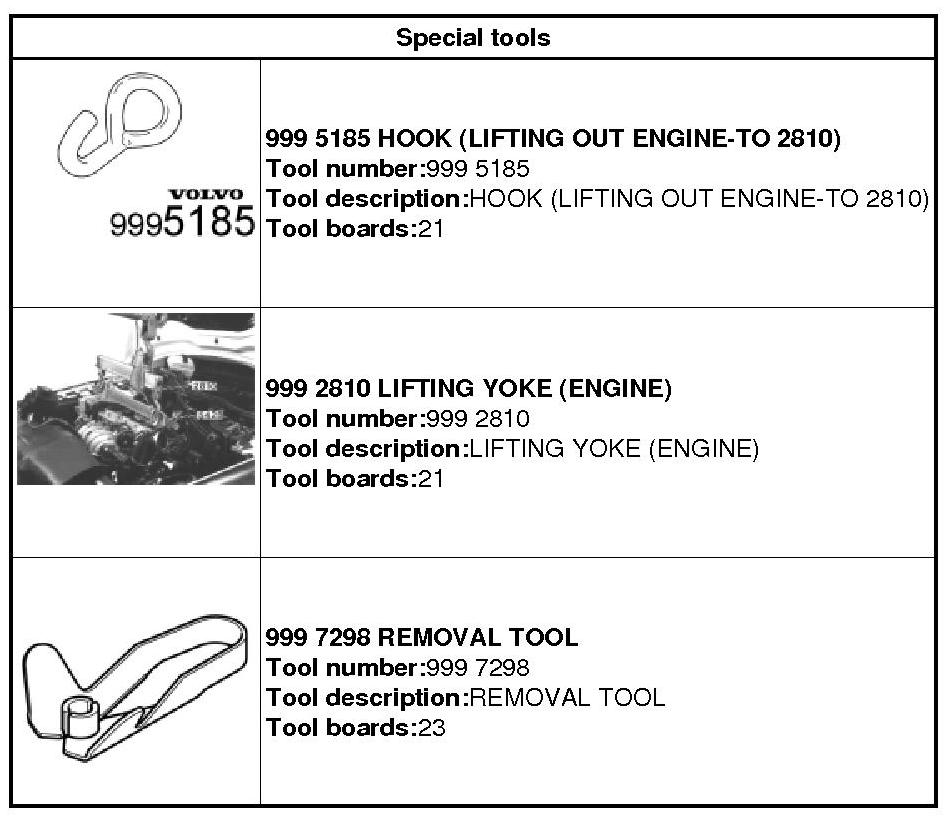

999 5185 HOOK 999 5185 Hook 999 2810 LIFTING YOKE 999 2810 Lifting Yoke

Install the following items:
- Engine support insulator, right Refer to: Engine support insulator, right, B5254T5, TF-80SC Engine Support Insulator, Right
- Engine support insulator left Refer to: Engine support insulator left, B6304T4, TF-80SC AWD, B5254T5, TF-80SC Engine Support Insulator Left




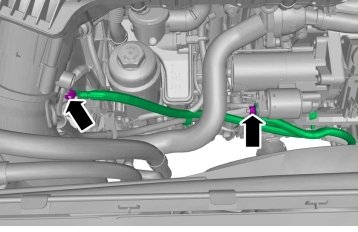

Torque: M8, 24 Nm




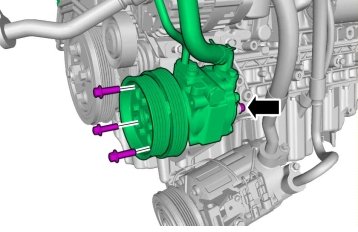

Torque: M10, 50 Nm




Torque: M6, 10 Nm




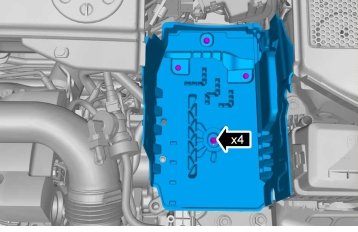

Torque: M8, 24 Nm
























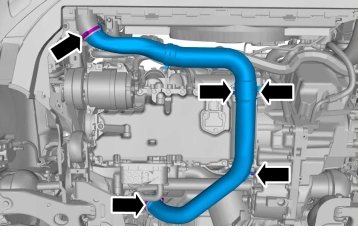

Torque: M8, 24 Nm




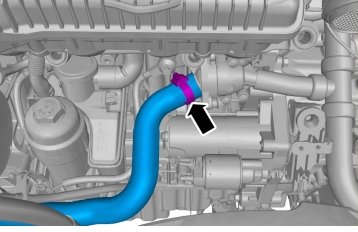

Torque: M6, 10 Nm
















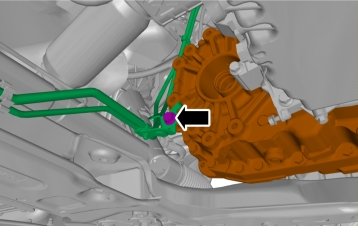

Torque: M6, 10 Nm




Torque: M6, 10 Nm




Torque: M6, 10 Nm




Torque: M6, 10 Nm












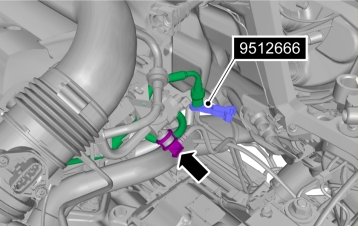

999 7298 Terminal removal tool 999 7298 Terminal Removal Tool








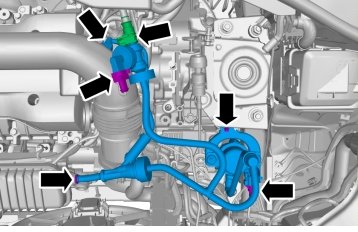

Torque: M6, 10 Nm

Install the following items:
- air cleaner (ACL) housing Refer to: Air cleaner housing, B5254T5 Service and Repair
- Temperature and manifold absolute pressure sensor (MAPT) Refer to: Temperature and manifold absolute pressure sensor (MAPT), B5254T5 Service and Repair
- the auxiliaries belt Refer to: Accessory Drive Belt, B5254T5 Service and Repair
- the catalytic converter Refer to: Catalytic converter, B5254T5, TF-80SC Service and Repair
- Drive shaft right Refer to: Drive shaft right, B6304T4, TF-80SC AWD, B5254T5, TF-80SC Drive Shaft Right
- Driveshaft left Refer to: Driveshaft left, B6304T4, TF-80SC AWD, B5254T5, TF-80SC Driveshaft Left
- Lower torque rod
- Plenum chamber Refer to: Plenum chamber Service and Repair
- battery Refer to: Battery Removal and Replacement

Fill cooling system, draining, filling, and bleeding Refer to: Cooling system - draining, charging and bleeding, B6304T4, B5254T5 Service and Repair

Top up the engine oil Refer to: Oil filter, B5254T5 Service and Repair
