Intake Manifold: Service and Repair

Operation number: 25102-2

Induction pipe

Removal

Note! Removal steps in this procedure may contain installation details.

Perform depressurizing fuel system Refer to: Fuel system pressure release, B6304T4, B5254T5 Fuel System Pressure Release

Battery, disconnection Battery Disconnecting and Connecting

Remove the air filter housing Refer to: Air cleaner housing, B5254T5 Service and Repair

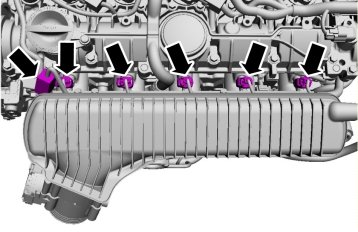

Torque: M6, 10 Nm
















Torque: M6, 10 Nm
















Torque: M6, 10 Nm








Torque: M6, 10 Nm

Installation

To install, reverse the removal procedure.
