Oil Pump: Service and Repair

Operation number: 22114-2

Oil pump






Removal

Remove timing belt Refer to: Timing belt, B5254T5 Service and Repair

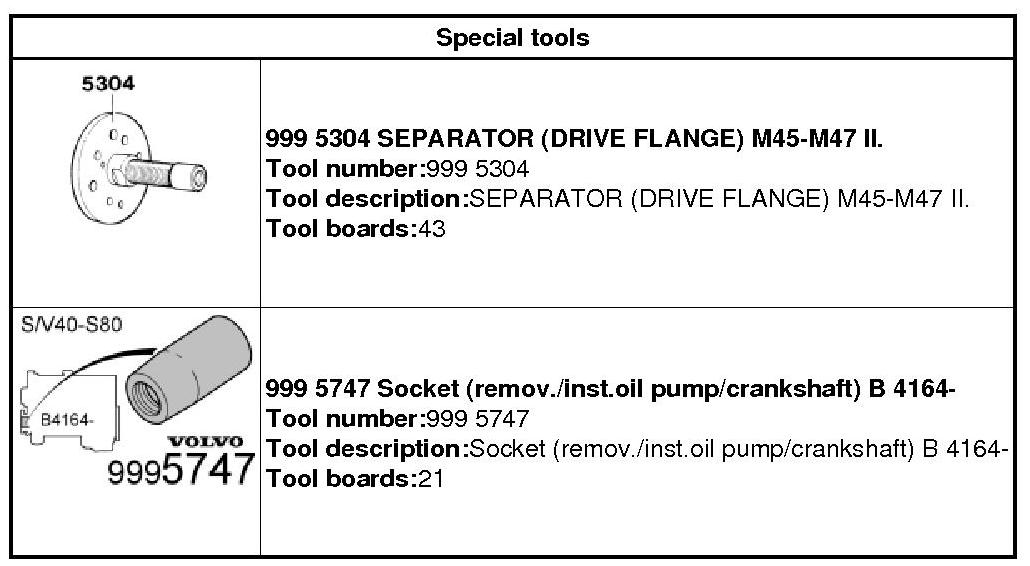

999 5304 SEPARATOR 999 5304 Separator





Warning! Be prepared to collect escaping fluid.

Installation





Caution! Take extra care not to damage the seal.

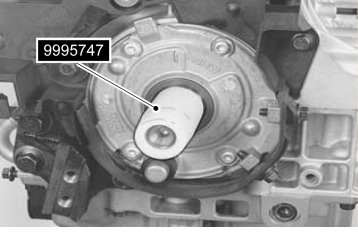

999 5747 Socket 999 5747 Socket
Torque: M6, 10 Nm





Note! The component can only be installed in 1 position.

Install timing belt Refer to: Timing belt, B5254T5 Service and Repair
