Oil Pan: Service and Repair

Operation number: 27102-2

Oil pan











Removal

Note! Removal steps in this procedure may contain installation details.

Remove the following items:
- Level sensor engine oil Refer to: Level sensor engine oil, B5254T5 Service and Repair
- the auxiliaries belt Refer to: Accessory Drive Belt, B5254T5 Service and Repair




Torque: M8, 24 Nm




Torque: M6, 10 Nm




Torque: M10, 50 Nm




Torque: M10, 50 Nm




Torque: M6, 10 Nm




Torque: M7, 17 Nm





Installation

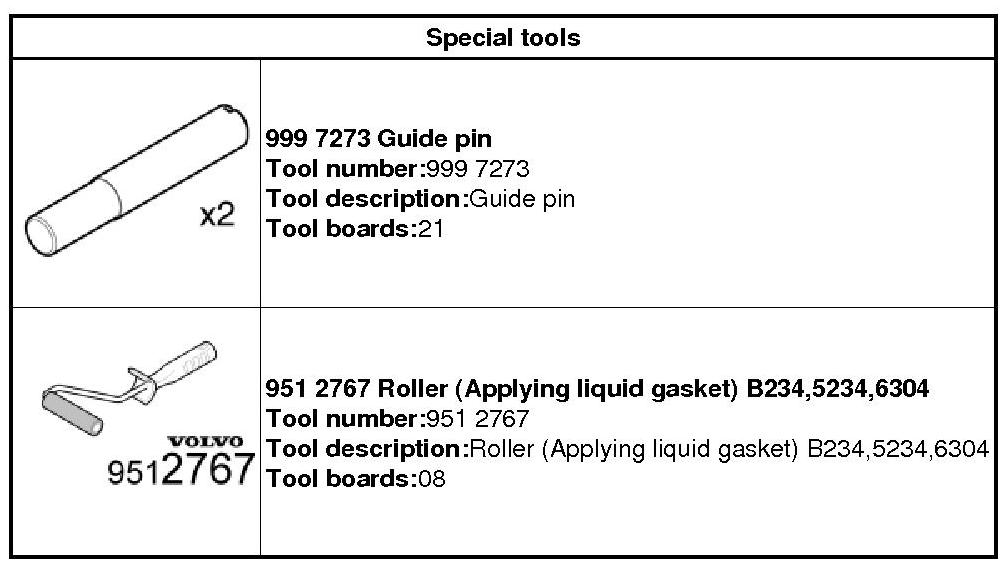

999 7273 Guide pin 999 7273 Guide Pin





Caution! Make sure that the gaskets are correctly located.





Caution! Make sure that the mating faces are clean and free of foreign material.

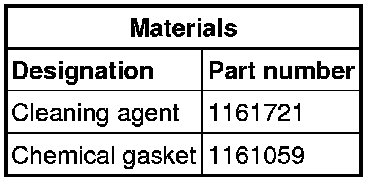

Use: Cleaning agent, 1161721

951 2767 Roller 951 2767 Roller

Use: Chemical gasket, 1161059




Torque: M7, 17 Nm

To install, reverse the removal procedure.
