Sun Shield, Rear Window

Sun shield, rear window



















INTRODUCTION
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.






Sun shield, rear window

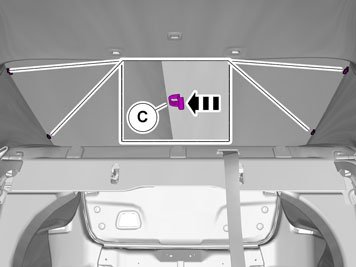

- Position the clips between the rear window and panels approximately in the positions shown.

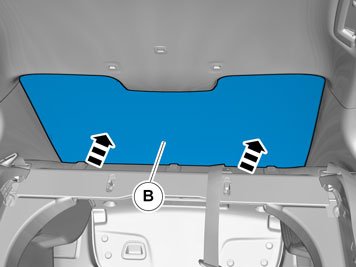

- Place the shield in the window.

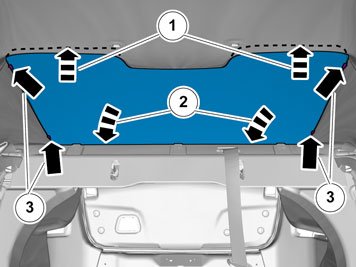

- Press the shield in to place between the roof panel and window and in the clips.
