Rear Door Window Regulator: Service and Repair

Operation number: 83528-2

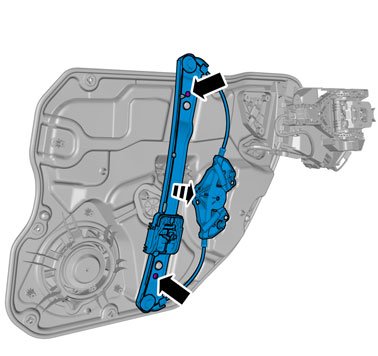

Lift mechanism, rear door

Removal

Note! Removal steps in this procedure may contain installation details.





Remove the following items:
- Panel rear door Refer to: Panel rear door Panel, Rear Side Door, Replacing

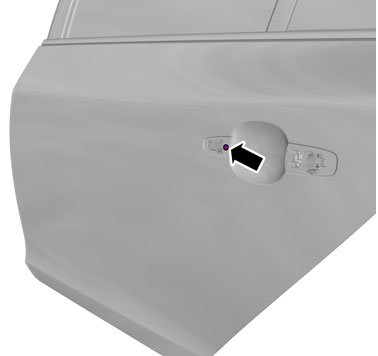

- Outer handle, rear door Refer to: Outer handle, rear door Service and Repair

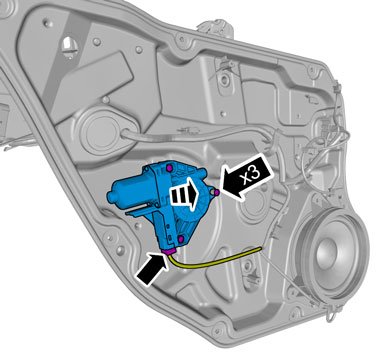

Torque: M5, 5 Nm




Torque: M6, 10 Nm

































Installation

To install, reverse the removal procedure.

Perform power window motor, initiation Refer to: Door Window Motor Initialization Testing and Inspection
