Front Door Window Regulator: Service and Repair

Operation number: 83526-2

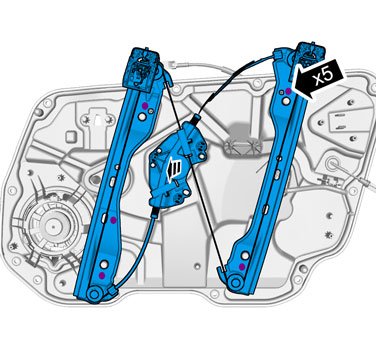

Lift mechanism, front door

Removal

Note! Removal steps in this procedure may contain installation details.

Remove the following items:
- Window, front door. Refer to: Window, front door. Service and Repair

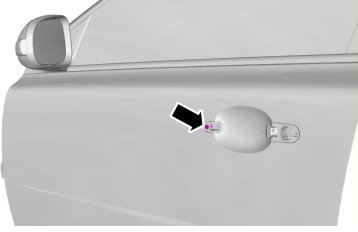

- Exterior Front Door Handle Left Refer to: Exterior Front Door Handle Left Exterior Left Front Door Handle












Torque: M5, 5 Nm

























Installation

To install, reverse the removal procedure.

Perform power window motor, initiation Refer to: Door Window Motor Initialization Testing and Inspection
