Rear Door Fixed Window Glass

Operation number: 84404-2

Rear Door Fixed Window Glass






Removal

Note! Removal steps in this procedure may contain installation details.

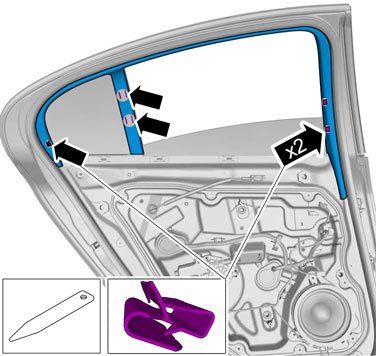

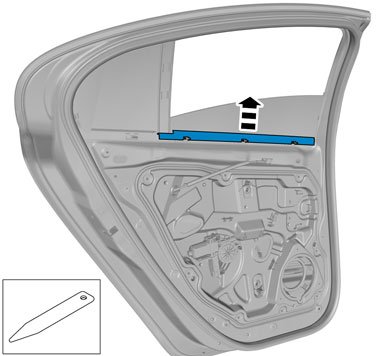

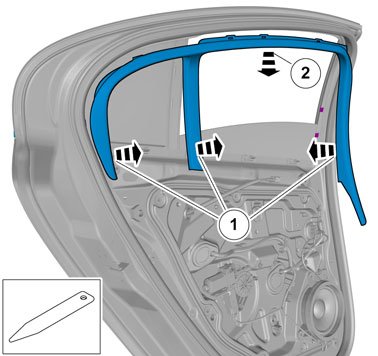

Remove panel side door rear Refer to: Panel rear door Panel, Rear Side Door, Replacing

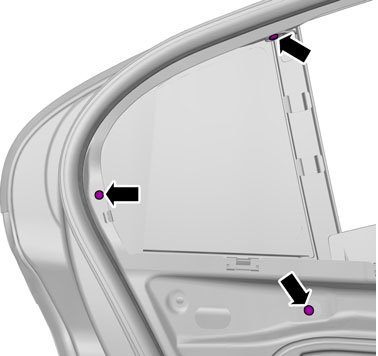

Torque: M5, 5 Nm

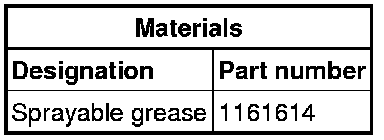

Use: Sprayable grease, 1161614

Installation

To install, reverse the removal procedure.
