Front Door Window Motor: Service and Repair

Electric motor, lift mechanism, front door

Removal

Note! Removal steps in this procedure may contain installation details.

Remove panel side door front Refer to: Panel front door Panel, Front Side Door, Replacing

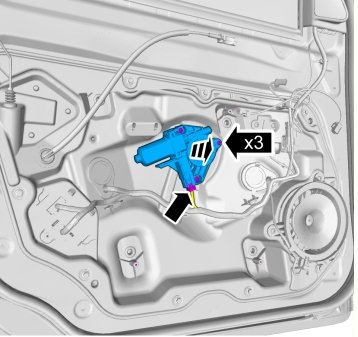

Torque: M6, 10 Nm

Installation

To install, reverse the removal procedure.

Perform power window motor, initiation Refer to: Door Window Motor Initialization Testing and Inspection
