Transfer Case Seal RH

Operation number: 43333-2

Transfer Case Seal RH

Note! Some variation in the illustrations may occur, but the essential information is always correct.






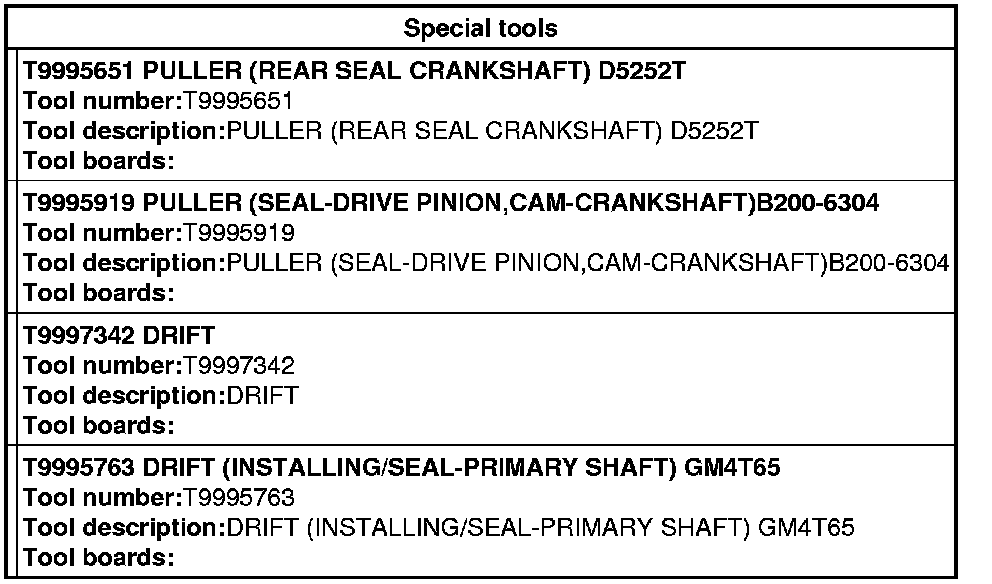

Removal

Note! Removal steps in this procedure may contain installation details.

Remove the bevel gear. Refer to: Bevel gear, B6304T4, TF-80SC AWD Bevel Gear






Note! Be prepared to collect escaping fluids.

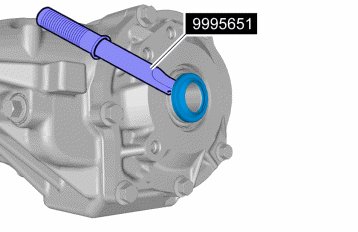

999 5651 Extractor 999 5651 Extractor

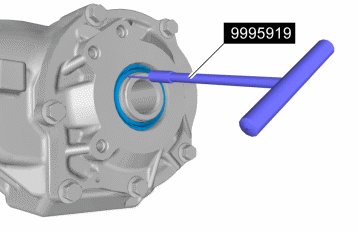

999 5919 PULLER 999 5919 Puller

Installation

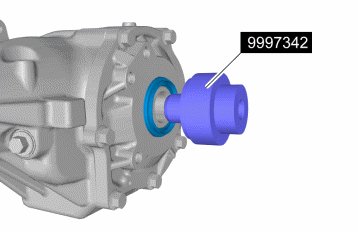

999 7342 Drift 999 7342 Drift

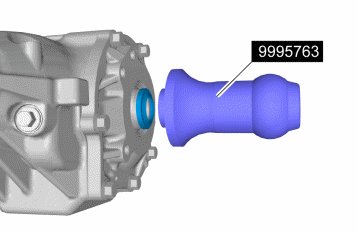

999 5763 Drift 999 5763 Drift

To install, reverse the removal procedure





Check the oil level in the bevel gear.
Use oil. Refer to: Lubricant transmission [1][2]Automatic Transmission/Transaxle
Fill up oil to the oil filler plug. Suck out 0.1 l oil.
Torque: Oil filler plug, bevel gear, 35 Nm
