Transfer Case Rear Seal

Transfer Case Rear Seal











Removal

Note! Removal steps in this procedure may contain installation details.

Loosen front propeller shaft joint Refer to: Propeller shaft, B6304T4, TF-80SC AWD Propeller Shaft




Torque: Flange to bevel gear, 38 Nm
Torque: Flange to bevel gear, 180 Nm

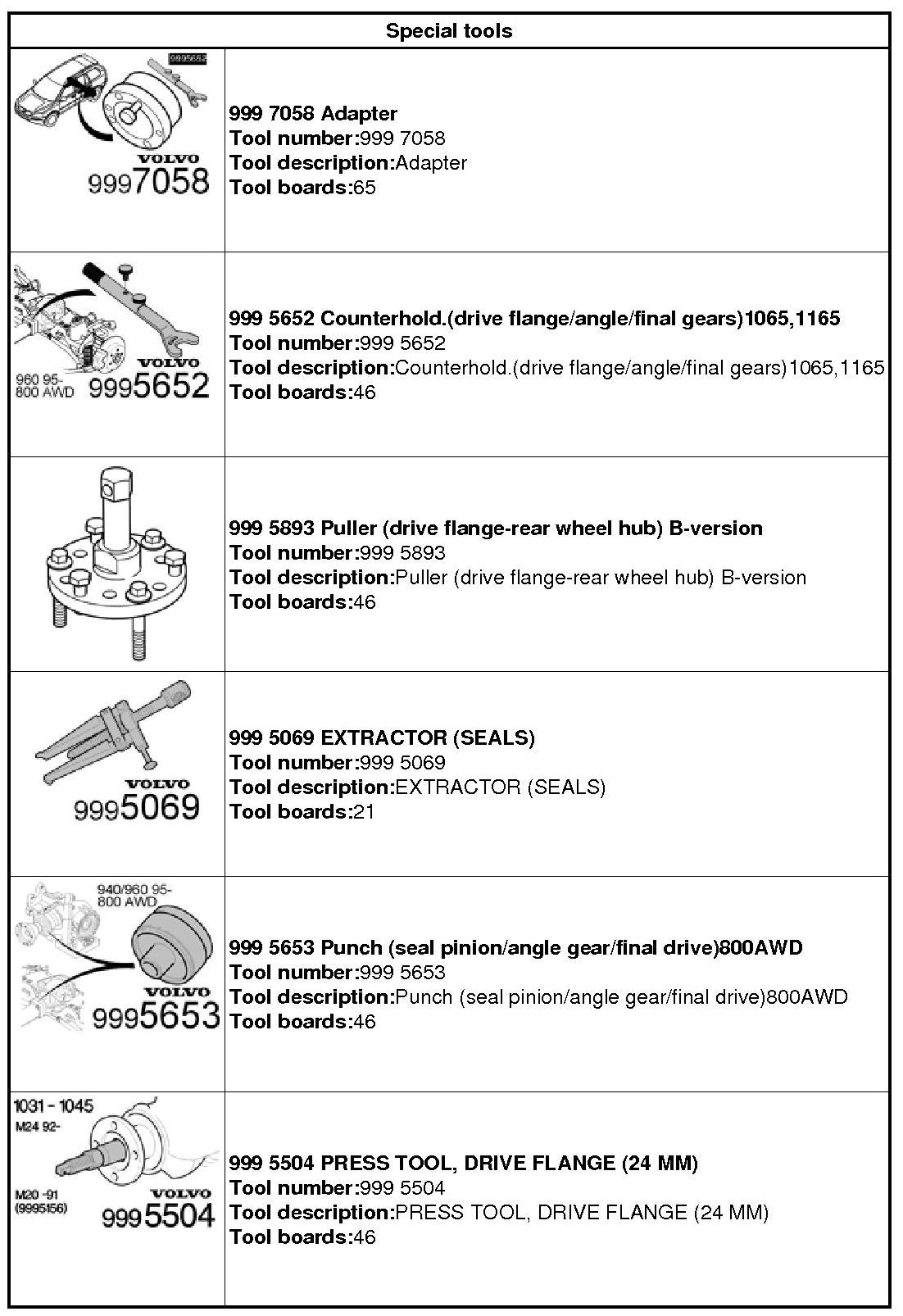

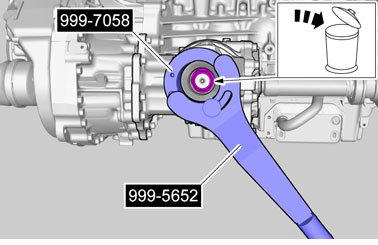

999 7058 Adapter 999 7058 Adapter 999 5652 Counterh. 999 5652 Counterhold

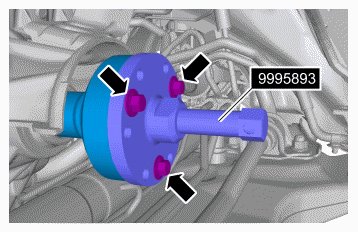

999 5893 Puller 999 5893 Puller





Warning! Be prepared to collect escaping fluid.

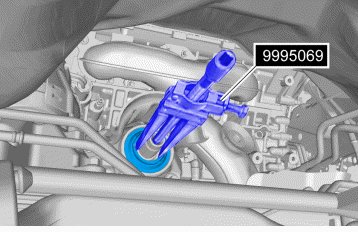

999 5069 EXTRACTOR 999 5069 Extractor

Installation

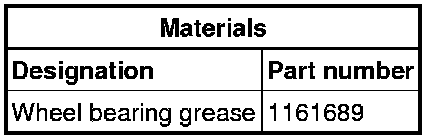

Use: Wheel bearing grease, 1161689

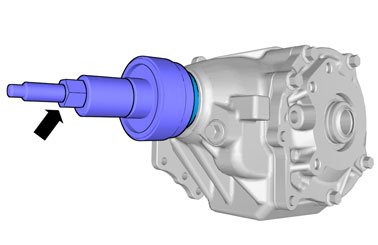

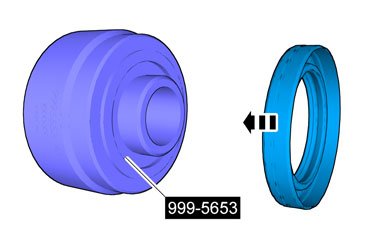

999 5653 Punch 999 5653 Punch

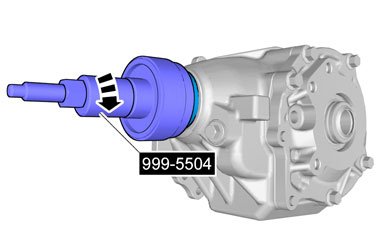

999 5504 PRESS TOOL, DRIVE FLANGE 999 5504 Press Tool, Drive Flange





To install, reverse the removal procedure.
