Transfer Case Connecting Sleeve Seals

Operation number: 46623-2

Transfer Case Connecting Sleeve Seals






Removal

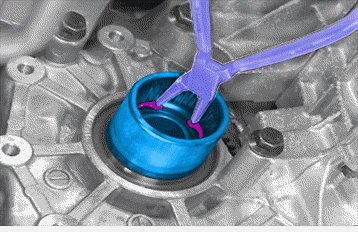

Remove bevel gear

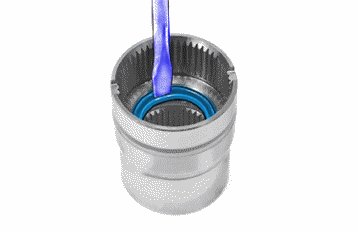

Warning! Be prepared to collect escaping fluid.

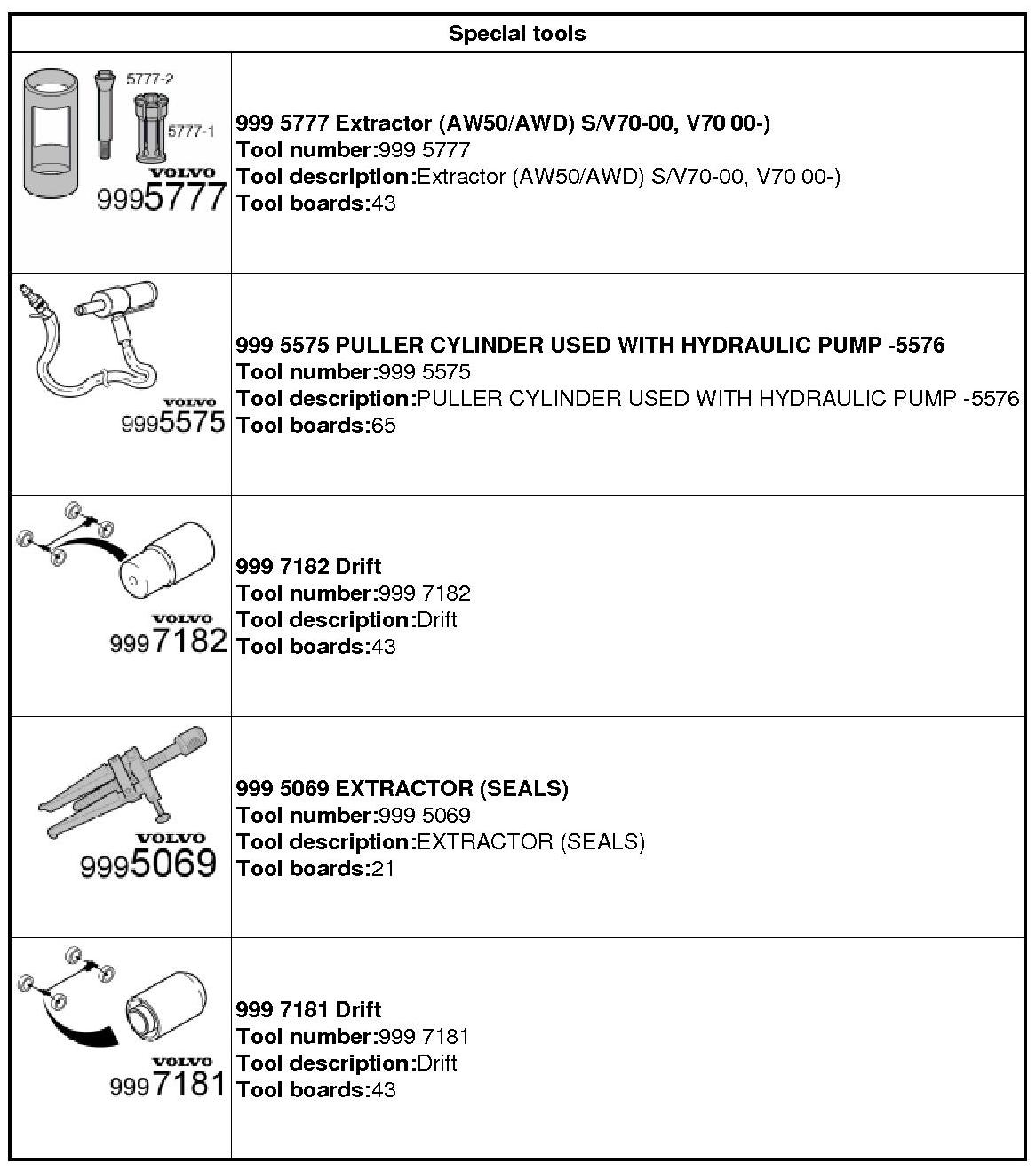

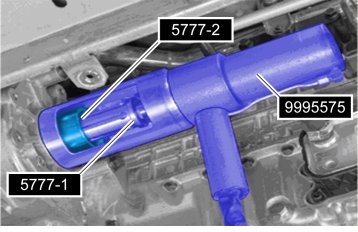

999 5777 Extractor 999 5777 Extractor 999 5575 PULLER CYLINDER USED WITH HYDRAULIC PUMP -5576 999 5575 Puller Cylinder Used With Hydraulic Pump -5576

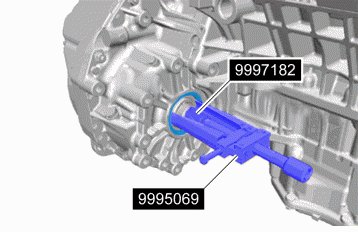

999 7182 Drift 999 7182 Drift 999 5069 EXTRACTOR 999 5069 Extractor













Warning! Wear protective gloves.

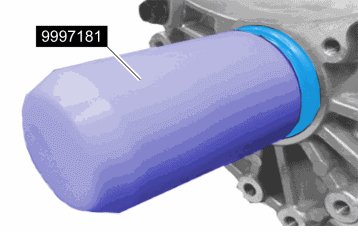

999 7181 Drift 999 7181 Drift

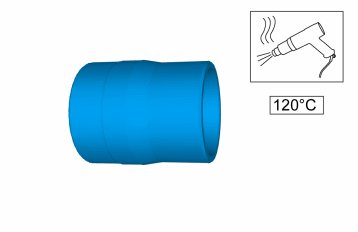

Warning! Make sure that the component is at ambient air temperature.

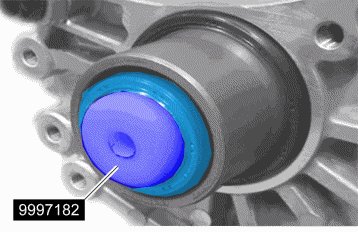

999 7182 Drift 999 7182 Drift

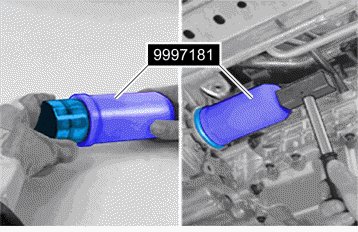

999 7181 Drift 999 7181 Drift





Installation

Install bevel gear

Perform oil transmission
