Fluid Filter - Transfer Case: Service and Repair

Operation number: 46507-2

Oil filter clutch four wheel drive






Removal

Note! Removal steps in this procedure may contain installation details.

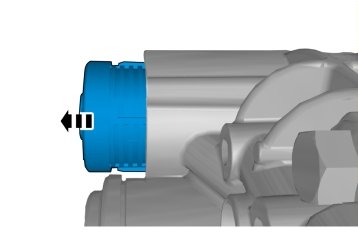

Remove drive flange Refer to: Active On-Demand Coupling Seal, B6304T4, TF-80SC AWD Active On-Demand Coupling Seal

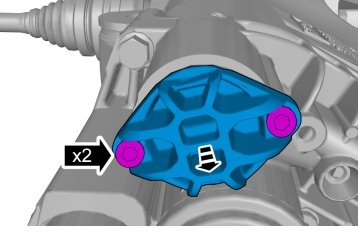

Warning! Be prepared to collect escaping fluid.

Torque: M5, 5 Nm

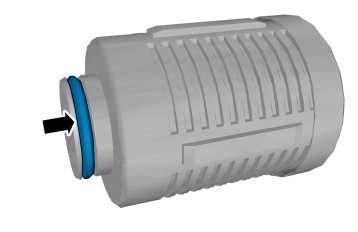

Caution! Only use the specified material to lubricate the seals.

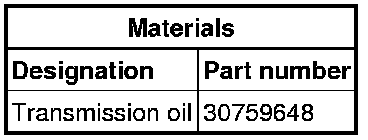

Use: Transmission oil, 30759648





Caution! Only use the specified material to lubricate the seals.

Use: Transmission oil, 30759648

Installation

To install, reverse the removal procedure.
