Sealing Ring, Driveshaft, Front Left

Operation number: 46624-2

Sealing ring, driveshaft, front left






Removal

Remove left-hand drive shaft Refer to: Driveshaft left, B6304T4, TF-80SC AWD, B5254T5, TF-80SC Driveshaft Left





Warning! Be prepared to collect escaping fluid.

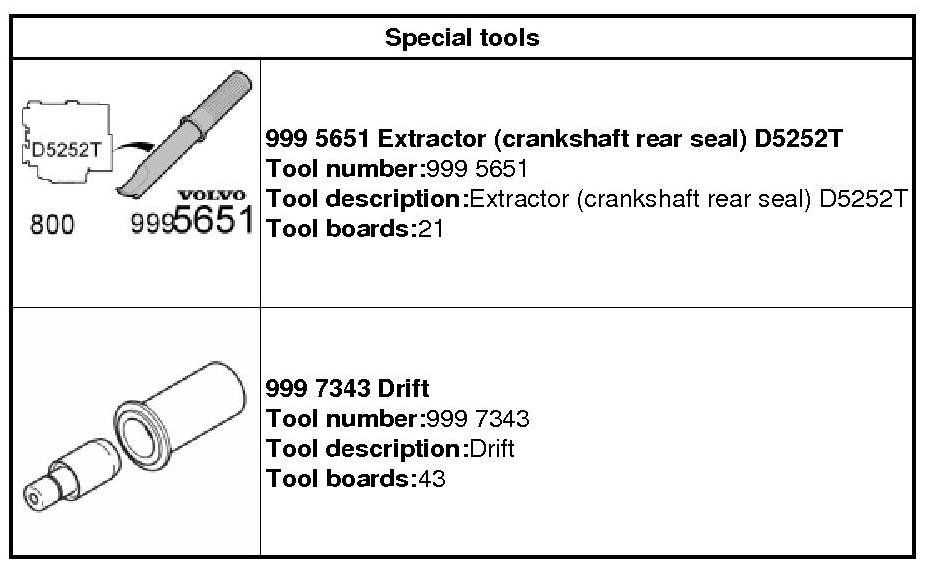

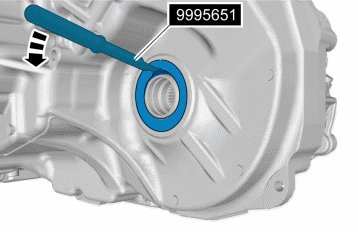

999 5651 Extractor 999 5651 Extractor

Installation




999 7343 Drift 999 7343 Drift





To install, reverse the removal procedure.

Carry out: gearbox oil level - check Refer to: Transmission oil level - checking, B6304T4, TF-80SC AWD, B5254T5, TF-80SC Checking Oil Level
