Driveshaft Left

Operation number: 46630-2

Driveshaft left






Removal

Note! Removal steps in this procedure may contain installation details.

Warning! Do not use magnets or magnetic tools close to tooth wheels, drive shafts or wheel hubs. A magnetized tooth wheel will lose its function and generate incorrect signals resulting in fault codes.

Note! Any magnetized tooth wheel, drive shaft or wheel hub must be replaced with a new component.

Remove the wheel Refer to: Wheels Service and Repair

Remove control arm front Refer to: Front control arm, B6304T4, TF-80SC AWD, B5254T5, TF-80SC Front Control Arm

Loosen link arm front Refer to: Front control arm, B6304T4, TF-80SC AWD, B5254T5, TF-80SC Front Control Arm

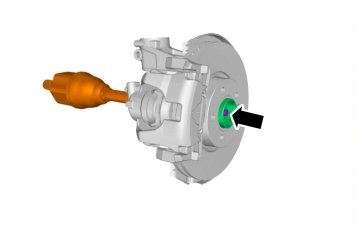

Torque: Driveshaft to wheel hub (front) Stage 1: 35 Nm Stage 2: 90 degree

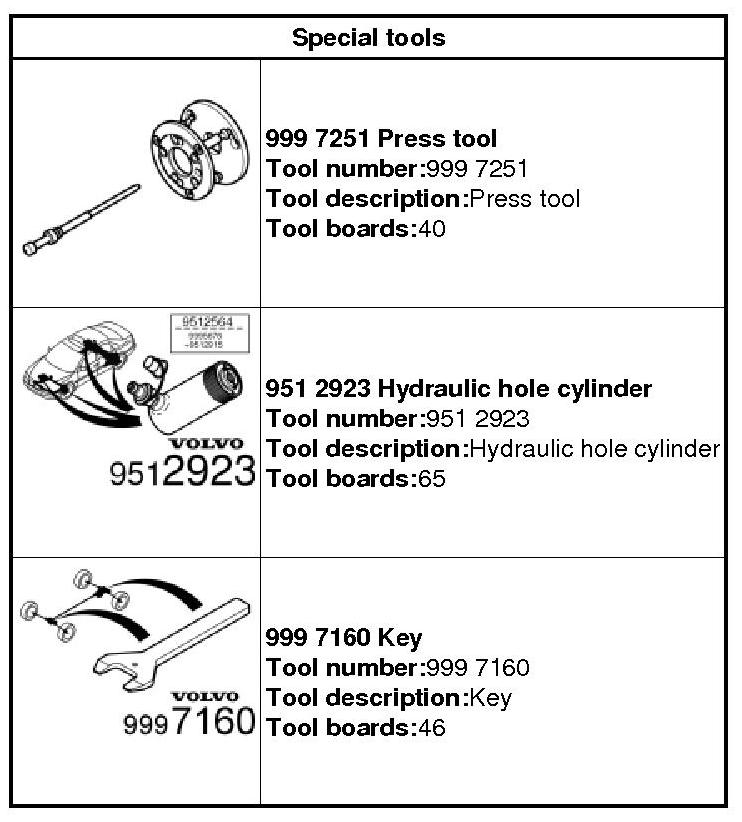

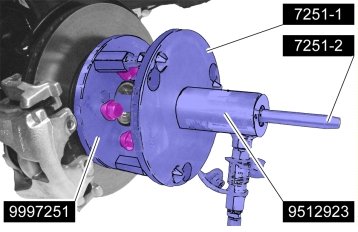

999 7251 Press tool 999 7251 Press Tool 951 2923 Hydraulic hole cylinder 951 2923 Hydraulic Hole Cylinder

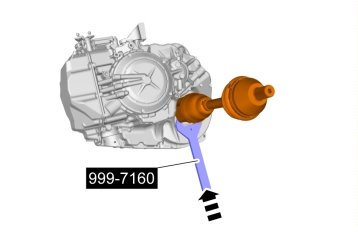

999 7160 Key 999 7160 Key





Caution! Take extra care not to damage the seal.

Installation

To install, reverse the removal procedure.
