Final Drive

Operation number: 46510-2

Final drive






Removal

Note! Removal steps in this procedure may contain installation details.

Perform rear end, service position Refer to: Rear suspension, service position, B6304T4, TF-80SC AWD Service and Repair

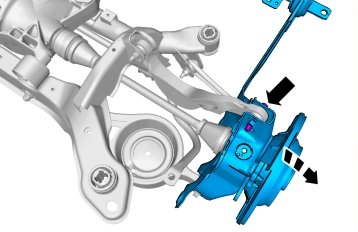

Torque: Upper arm rear to wheel knuckle, 110 Nm

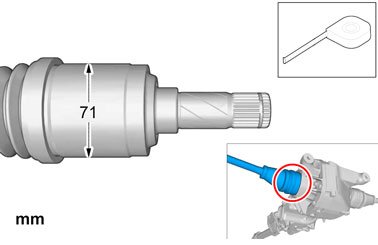

Vehicles early version

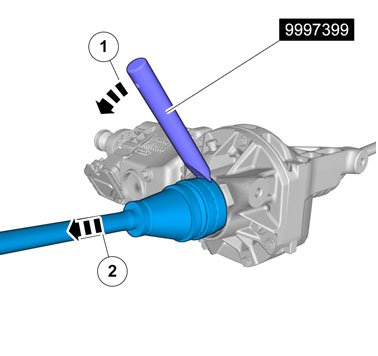

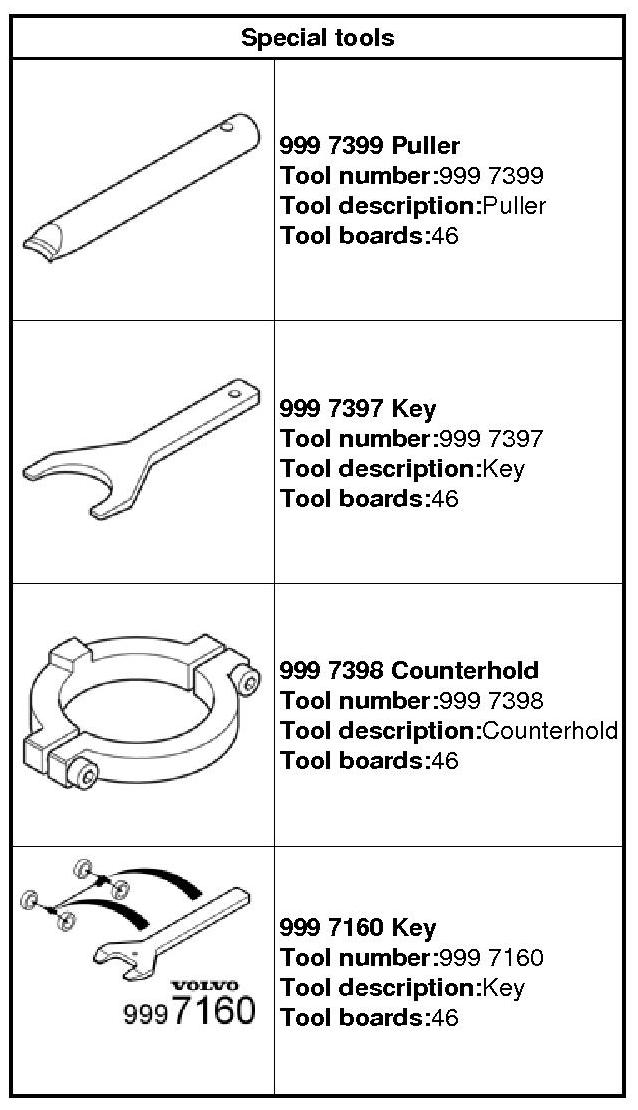

999 7399 Puller 999 7399 Puller

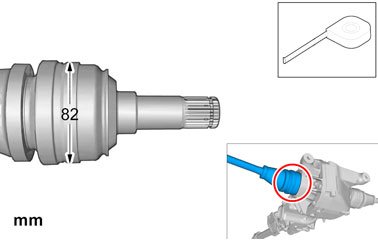

Vehicles late version

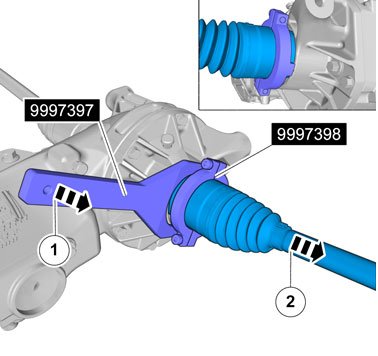

999 7397 Key 999 7397 Key 999 7398 Counterhold 999 7398 Counterhold

All vehicles

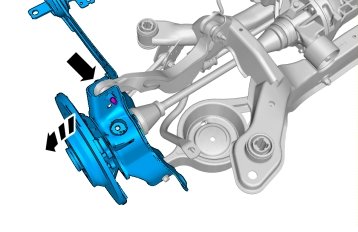

Torque: Upper arm rear to wheel knuckle, 110 Nm

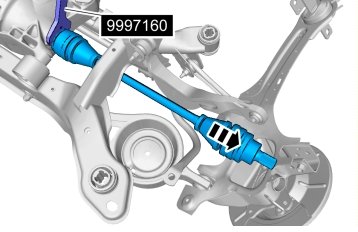

999 7160 Key 999 7160 Key

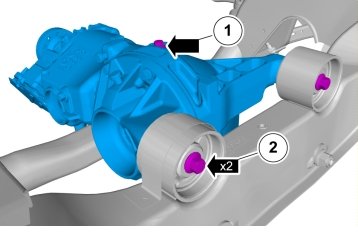

Torque: M12, 80 Nm

Installation

To install, reverse the removal procedure.
