Clutch Four-Wheel Drive

Operation number: 46505-2

Clutch four-wheel drive






Removal

Note! Removal steps in this procedure may contain installation details.

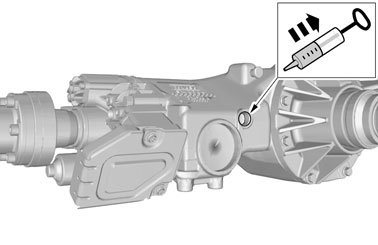

Warning! Be prepared to collect escaping fluid.

Torque: Oil plug, Active On-Demand Coupling, 35 Nm





Loosen rear propeller shaft joint Refer to: Propeller shaft, B6304T4, TF-80SC AWD Propeller Shaft









Warning! Be prepared to collect escaping fluid.

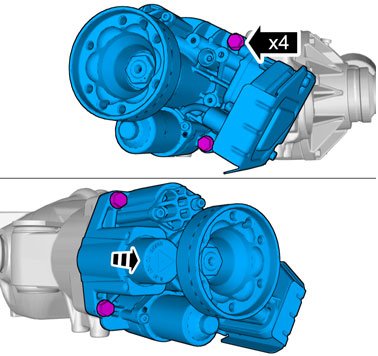

Note! Note the different lengths of the bolts.

Torque: M8, 24 Nm

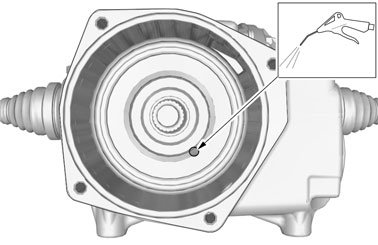

Warning! Wear safety goggles, protective gloves and ear protectors.





Caution! Use lint free cloth.

Installation





Caution! Only use the specified material to lubricate the seals.

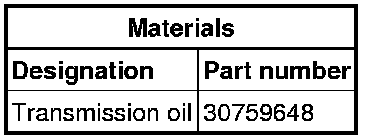

Use: Transmission oil, 30759648

To install, reverse the removal procedure.

Fill with oil Refer to: Active On Demand Coupling Fluid Level Check, TF-80SC AWD Active On Demand Coupling Fluid Level Check

Order and download appropriate software. Programming and Relearning
