Active On-Demand Coupling Oil Pump

Active On-Demand Coupling Oil Pump






Removal

Note! Removal steps in this procedure may contain installation details.

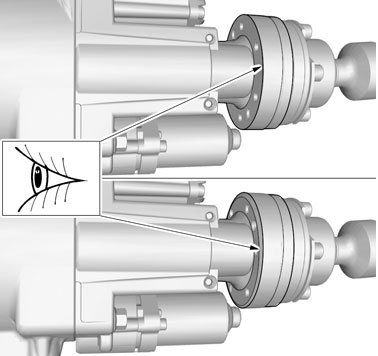

Vehicles with drive flange without chamfering

Remove the final drive flange Refer to: Drive flange final drive, B6304T4, TF-80SC AWD Drive Flange Final Drive

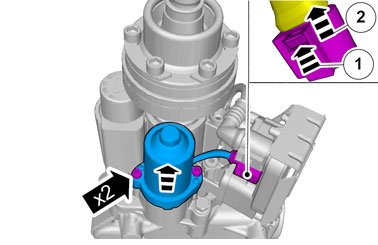

All vehicles





Warning! Be prepared to collect escaping fluid.

Torque: M5, 5 Nm

Installation

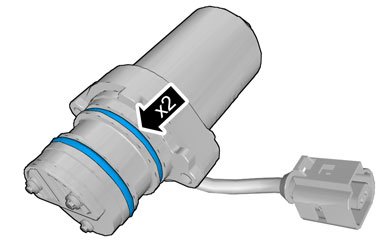

Caution! Only use the specified material to lubricate the seals.

Use: Transmission oil, 30759648

To install, reverse the removal procedure.

Fill with oil Refer to: Active On Demand Coupling Fluid Level Check, TF-80SC AWD Active On Demand Coupling Fluid Level Check
