Active On Demand Coupling Fluid Level Check

Active On Demand Coupling Fluid Level Check

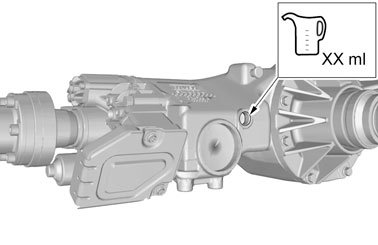

Removal





Warning! Be prepared to collect escaping fluid.

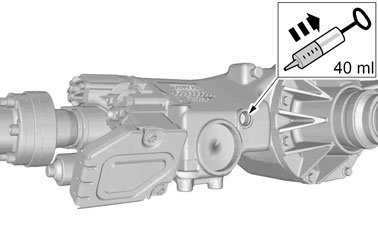

Filling





Caution! The fluid must be allowed to escape until a continuous flow changes into single drops.

Use: Transmission oil, 30759648

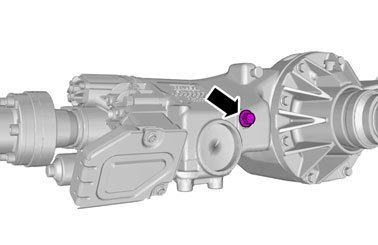

Installation




Torque: Oil plug, Active On-Demand Coupling, 35 Nm

Carry out a road test.

Removal





Warning! Be prepared to collect escaping fluid.

Filling





Caution! The fluid must be allowed to escape until a continuous flow changes into single drops.

Use: Transmission oil, 30759648

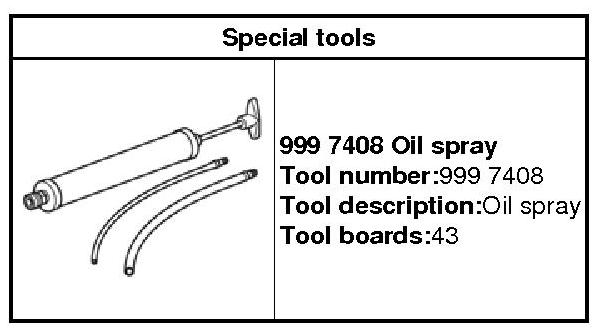

999 7408 Oil spray 999 7408 Oil Spray

Installation




Torque: Oil plug, Active On-Demand Coupling, 35 Nm
