Differential Input Shaft Seal

Operation number: 46514-2

Differential Input Shaft Seal











Removal

Remove four-wheel drive clutch Refer to: Clutch four-wheel drive, B6304T4, TF-80SC AWD Clutch Four-Wheel Drive





Warning! Be prepared to collect escaping fluid.

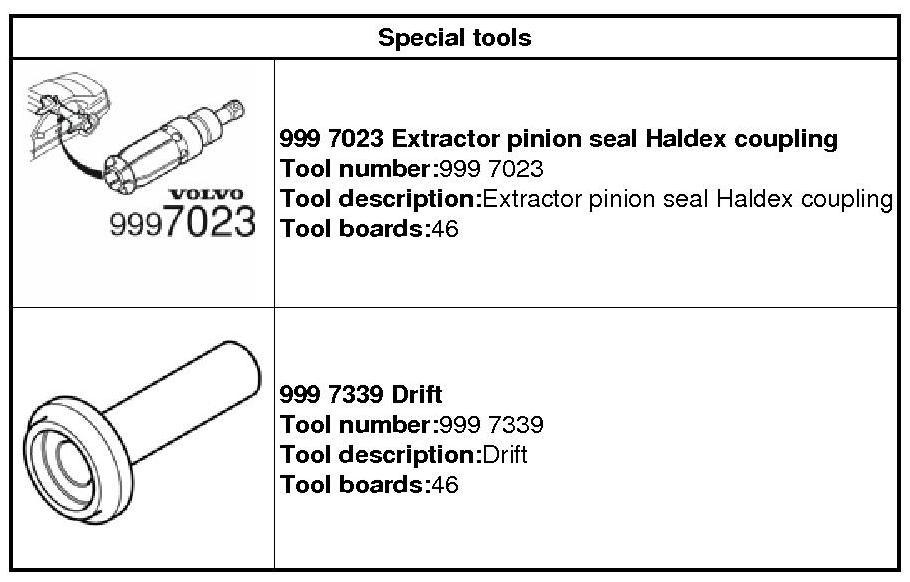

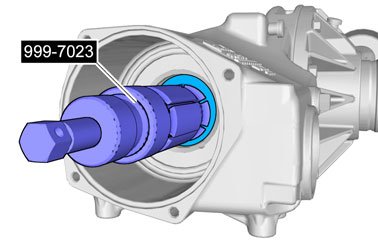

999 7023 Extractor pinion seal Haldex coupling 999 7023 Extractor pinion seal Haldex coupling

Installation

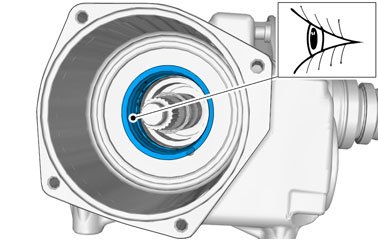

Caution! Make sure that the surface is clean and free of foreign material.

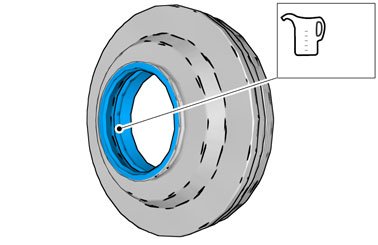

Caution! Only use the specified material to lubricate the seals.

Use: Rear axle oil, 1161620

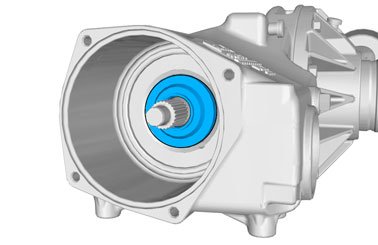

999 7339 Drift 999 7339 Drift

Fill with oil Refer to: Differential Fluid Level Check, TF-80SC AWD Differential Fluid Level Check

Install clutch four-wheel drive Refer to: Clutch four-wheel drive, B6304T4, TF-80SC AWD Clutch Four-Wheel Drive
