Active On-Demand Coupling Seal

Operation number: 46506-2

Active On-Demand Coupling Seal











Removal

Note! Removal steps in this procedure may contain installation details.

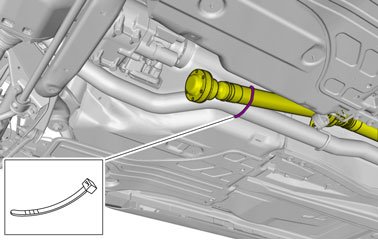

Loosen rear propeller shaft joint Refer to: Propeller shaft, B6304T4, TF-80SC AWD Propeller Shaft

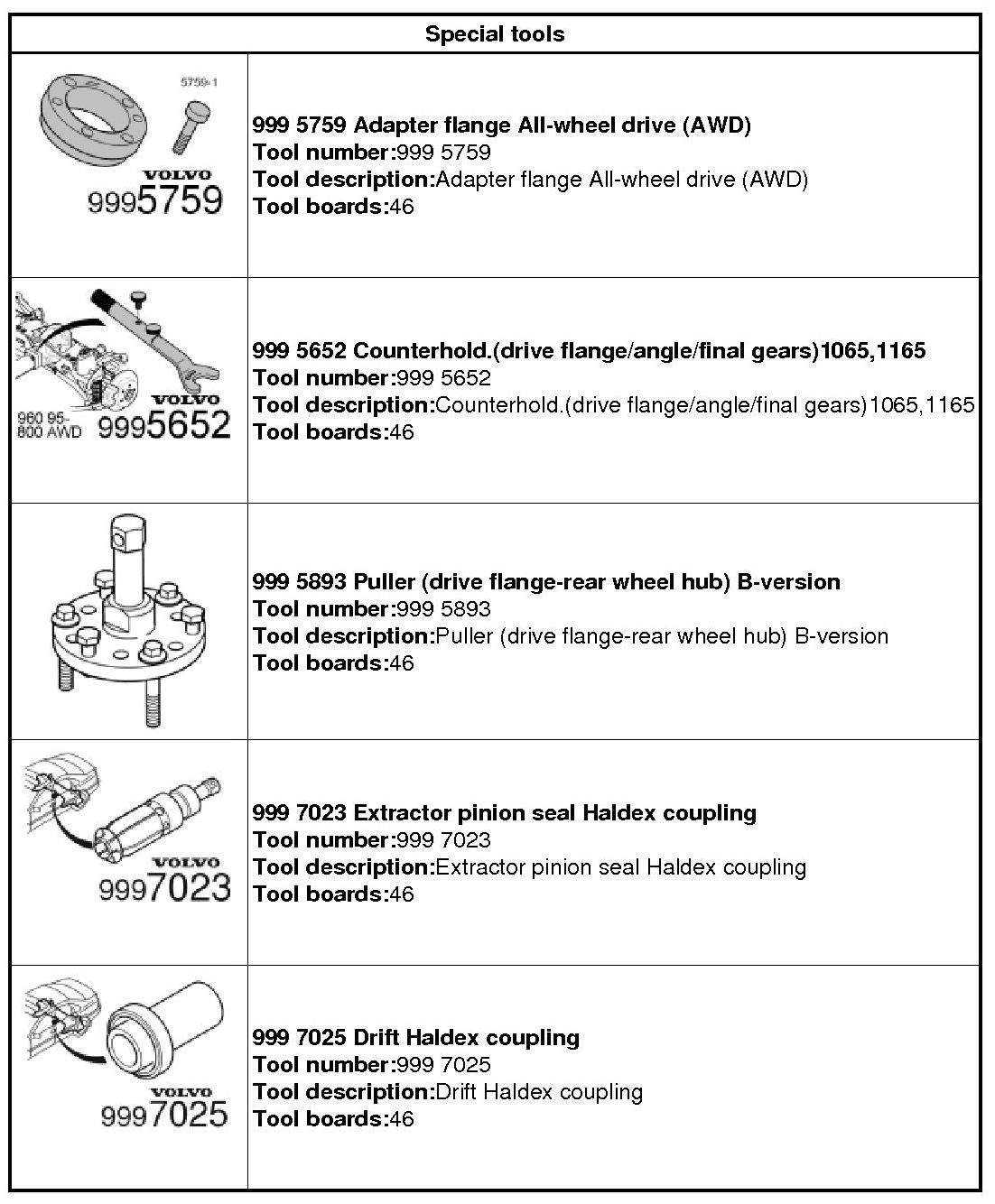

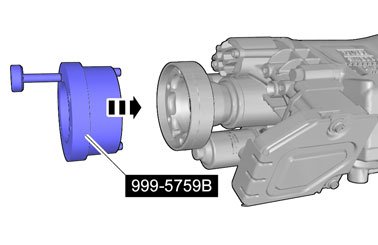

999 5759 Adapter flange All-wheel drive 999 5759 Adapter flange All-wheel drive

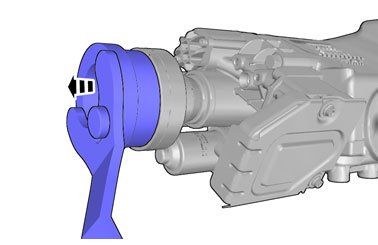

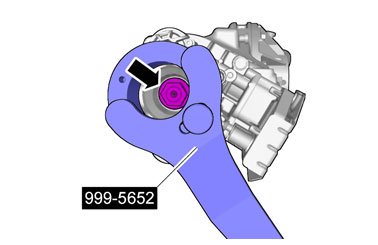

999 5652 Counterh. 999 5652 Counterhold
Torque: Pinion nut for clutch AOC, 150 Nm









Caution! Note the position of the component before removal.





Warning! Be prepared to collect escaping fluid.

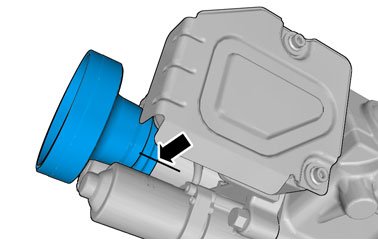

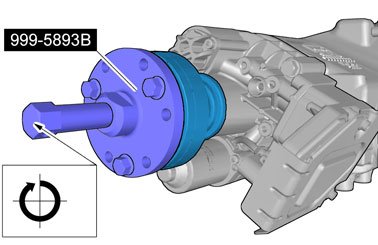

999 5893 Puller 999 5893 Puller





Warning! Be prepared to collect escaping fluid.

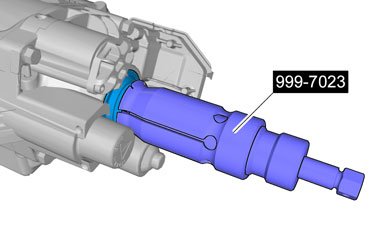

999 7023 Extractor pinion seal Haldex coupling 999 7023 Extractor pinion seal Haldex coupling

Installation

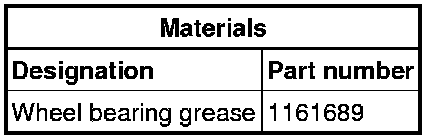

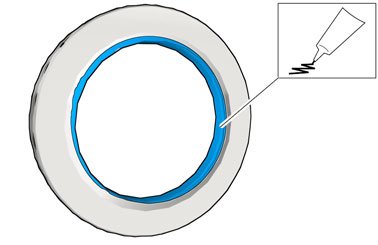

Use: Wheel bearing grease, 1161689

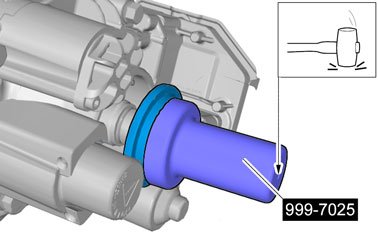

999 7025 Drift Haldex coupling 999 7025 Drift Haldex coupling

To install, reverse the removal procedure.

Fill with oil Refer to: Active On Demand Coupling Fluid Level Check, TF-80SC AWD Active On Demand Coupling Fluid Level Check
