Wiring Harness: Service and Repair

Operation number: 43751

Transmission Control Unit Wiring Harness

Removal

Note! Removal steps in this procedure may contain installation details.

Remove the following items:
- cover, control system Refer to: Cover, control system, B6304T4, TF-80SC AWD, B5254T5, TF-80SC Cover, Control System
- Transmission Control Module (TCM) Refer to: Transmission Control Module (TCM), B6304T4, TF-80SC AWD, B5254T5, TF-80SC Transmission Control Module (TCM)




Torque: M5, 5 Nm

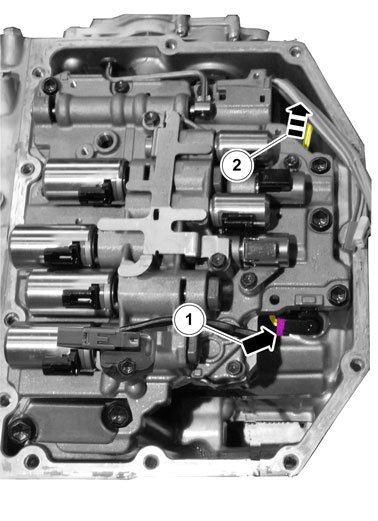

Note! Note the position of the electrical connectors.









Installation









To install, reverse the removal procedure.
