Selector Lever Assembly

Operation number: 43214-243203

Selector Lever Assembly

Removal

Note! Removal steps in this procedure may contain installation details.





















Remove the following items:

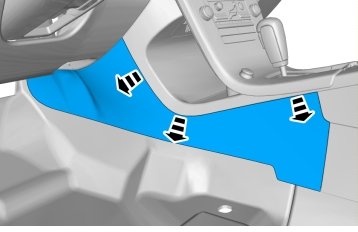

- Floor console Refer to: Floor console, TF-80SC AWD, TF-80SC Floor Console

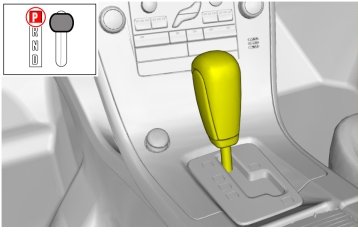

- Knob, gear shift selector Refer to: Knob, gear shift selector, B6304T4, TF-80SC AWD, B5254T5, TF-80SC Knob, Gear Shift Selector

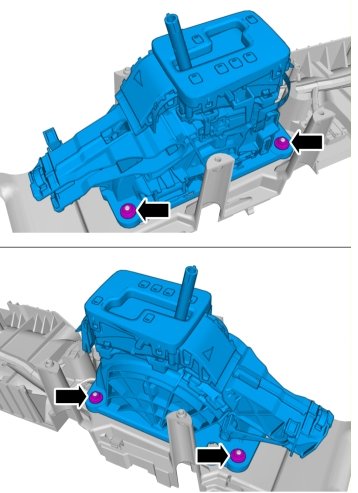

Torque: M6, 10 Nm

Installation

To install, reverse the removal procedure.

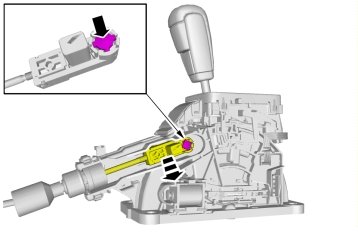

Adjust the gear selector cable Refer to: Gear selector cable, adjusting, B6304T4, TF-80SC AWD, B5254T5, TF-80SC Adjustments
