Transmission

Operation number: 43710-2

Transmission

Removal

Note! Removal steps in this procedure may contain installation details.

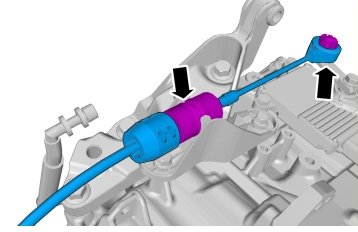

Remove the following items:
- bevel gear Refer to: Bevel gear, B6304T4, TF-80SC AWD Bevel Gear
- Accessory Drive Component Bracket Refer to: Accessory Drive Component Bracket, B6304T4 Service and Repair

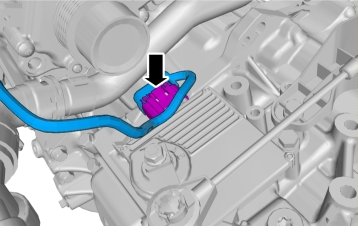

Remove the following items:
- Engine support insulator left Refer to: Engine support insulator left, B6304T4, TF-80SC AWD, B5254T5, TF-80SC Engine Support Insulator Left
- Front subframe Refer to: Front subframe, B6304T4, TF-80SC AWD, B5254T5, TF-80SC Service and Repair
- Driveshaft left Refer to: Driveshaft left, B6304T4, TF-80SC AWD, B5254T5, TF-80SC Driveshaft Left
- Drive shaft right Refer to: Drive shaft right, B6304T4, TF-80SC AWD, B5254T5, TF-80SC Drive Shaft Right

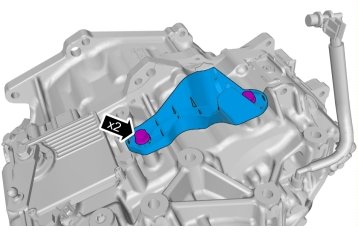

Torque: M6, 10 Nm

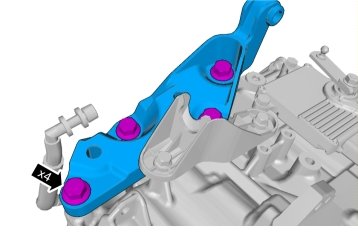

Torque: M12, 80 Nm

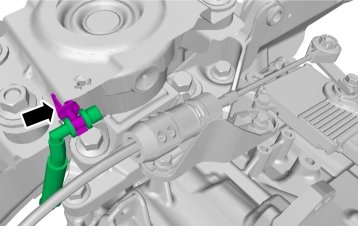

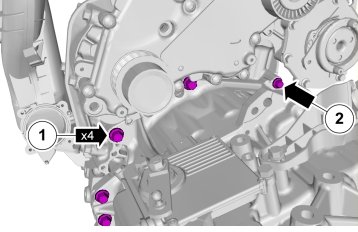

Remove the following items:

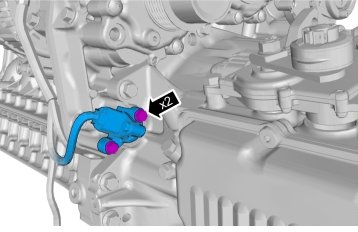

1. Torque: M10, 50 Nm

2. Torque: M8, 24 Nm

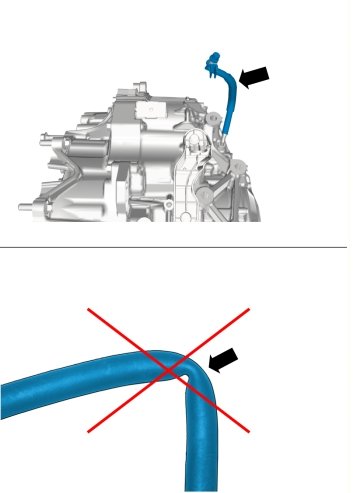

Caution! Make sure that all openings are sealed. Use new blanking caps.

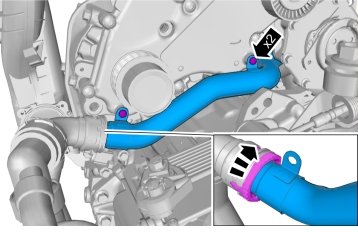

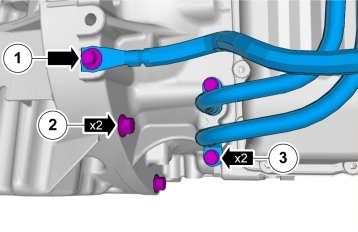

Remove the following items:
1. Torque: M8, 24 Nm

2. Torque: M10, 50 Nm

3. Torque: M6, 10 Nm

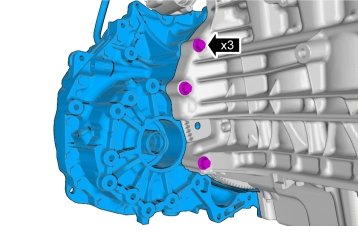

Remove the following items:
- starter motor Refer to: Starter motor, B6304T4 Service and Repair
- Crankshaft front seal Refer to: Crankshaft front seal, B6304T4, TF-80SC AWD Service and Repair

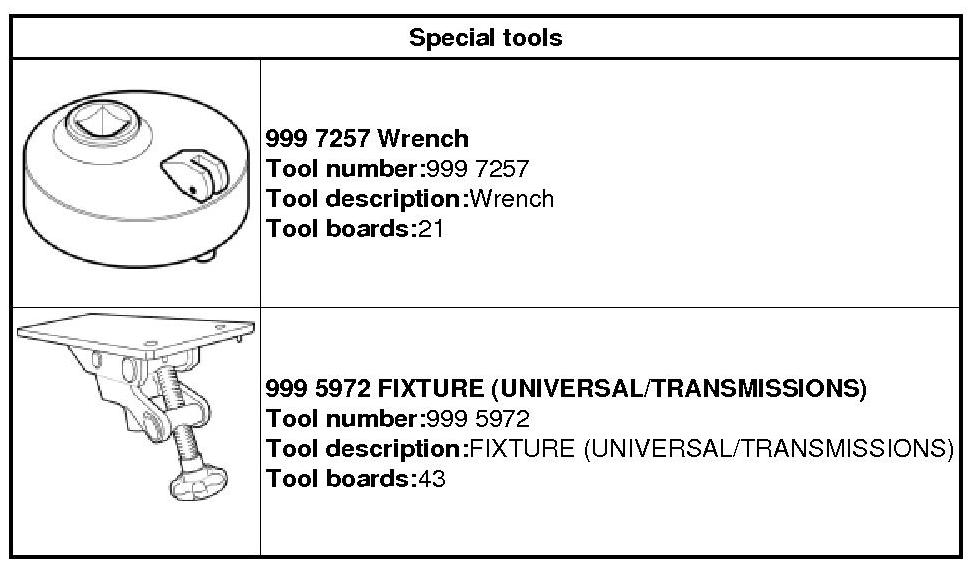

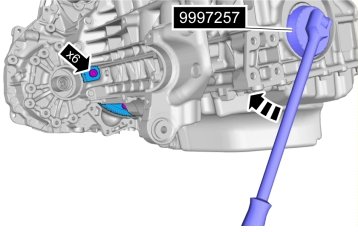

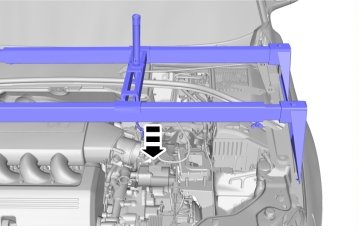

999 7257 Wrench 999 7257 Wrench
Torque: Torque converter to flexplate (screw), 60 Nm

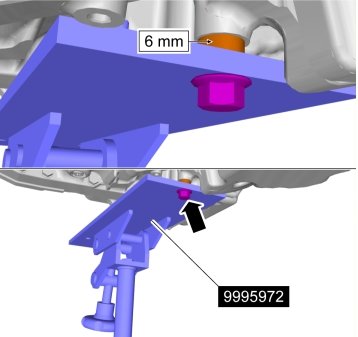

999 5972 FIXTURE 999 5972 Fixture

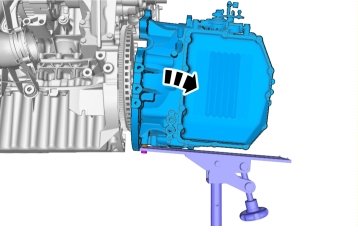

Torque: M10, 50 Nm

Note! This step is only necessary when installing a new component.

Installation

Perform transaxle, preparations before installing Refer to: Transmission, preparations before installing, B6304T4, TF-80SC AWD, B5254T5, TF-80SC Transmission, Preparations Before Installing

To install, reverse the removal procedure.
