Transaxle Oil

Operation number: 43105-2

Transaxle oil

Note! Some variation in the illustrations may occur, but the essential information is always correct.






Changing transmission fluid











Warning! Avoid skin contact with the specified material.

Warning! Be prepared to collect escaping fluids.

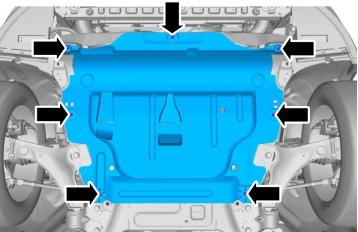

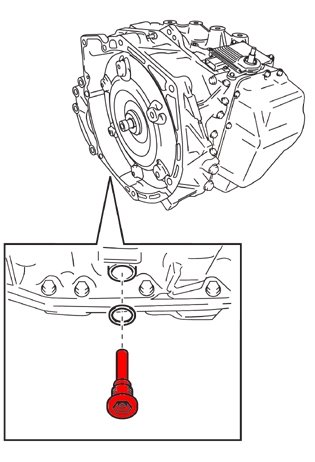

Remove the integrated level plug (Torx 40).

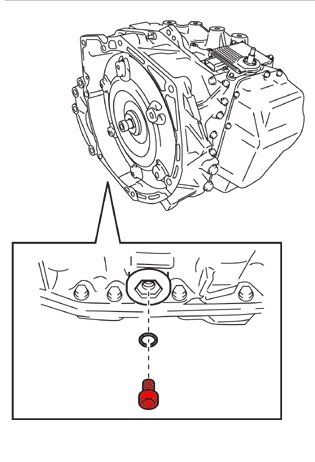

Remove the draining plug.
Drain the transmission fluid.
Install the drain plug. Use a new gasket, lubricate it with ATF oil.
Torque: Oil drain plug, gearbox, 35 Nm

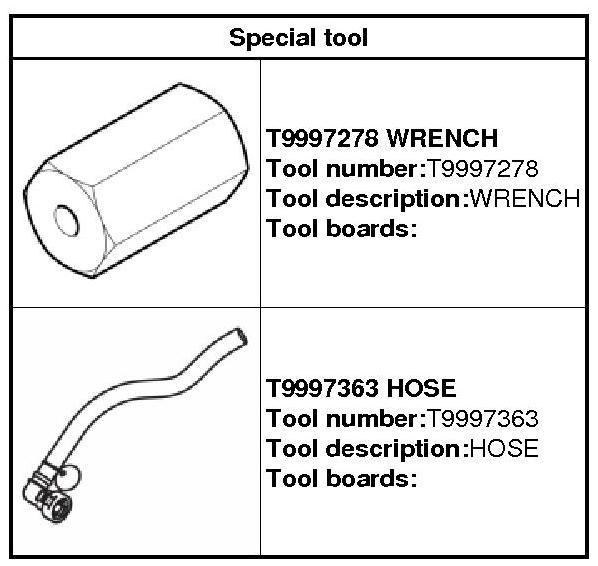

999 7278 Wrench 999 7278 Wrench





Install the level plug by hand, Reuse the O-ring.

Remove the air cleaner (ACL) housing. Refer to: Air cleaner housing, B6304T4, B5254T5 Service and Repair






Caution! Ensure that equipment and tools are clean and free from contaminants and lubricant.

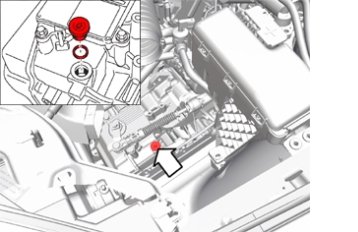

Remove the filler plug (Torx 55).
Lower a filler nozzle or a hose with funnel into the filler hole.

Install the air cleaner (ACL) housing. Refer to: Air cleaner housing, B6304T4, B5254T5 Service and Repair

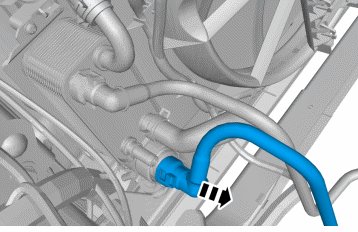

Disconnect the drain hose.






Warning! Be prepared to collect escaping fluids.

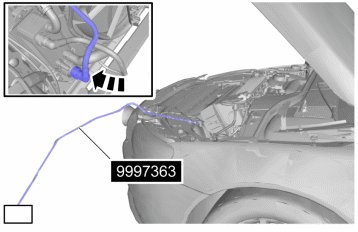

999 7363 Hose 999 7363 Hose

Fill with 4l of oil. Use transmission fluid. Refer to: Lubricant transmission [1][2]Automatic Transmission/Transaxle

Apply the parking brake. Move the gear selector lever to position P.
Start the engine and allow to idle.
Shift through all the positions between P and D on the gear selector. Stop for 2 seconds per position. Switch off when air bubbles are visible in the hose.
Fill with 2 liters of oil. Start the engine again and allow it to idle. Switch off when air bubbles are visible in the hose.
Fill with 2 liters of oil again. Start the engine and allow it to idle. Switch off when air bubbles are visible in the hose.

Install the drain hose for the oil cooler.

Remove the integrated level plug.
Top up with oil until it starts to run out of the transmission.
Install the level plug by hand.

Check the oil level. Refer to: Transmission oil level - checking, B6304T4, TF-80SC AWD, B5254T5, TF-80SC Checking Oil Level
Reset the counter when replacing the transmission.
