Transmission Control Unit Solenoids






Transmission Control Unit Solenoids

Removal

Note! Removal steps in this procedure may contain installation details.

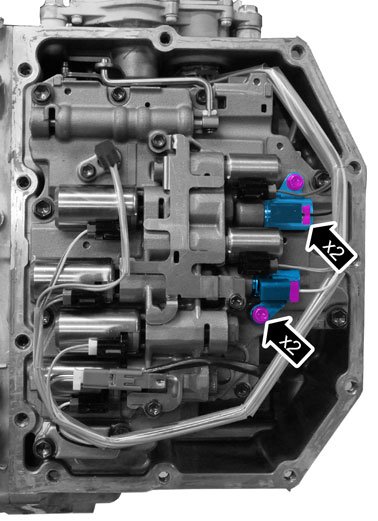

Remove cover control system Refer to: Cover, control system, B6304T4, TF-80SC AWD, B5254T5, TF-80SC Cover, Control System




Torque: M5, 5 Nm

Installation

To install, reverse the removal procedure.
