Transmission Control Module (TCM)

Operation number: 43715-2

Transmission Control Module (TCM)

Removal

Note! Removal steps in this procedure may contain installation details.





Perform battery disconnecting and connecting. Battery Disconnecting and Connecting

Remove the air filter housing Refer to: Air cleaner housing, B6304T4, B5254T5 Service and Repair

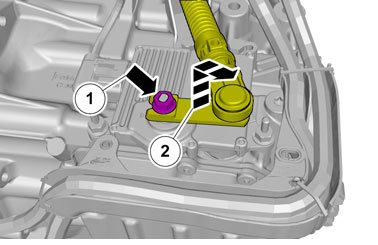

Torque: Gear selector mechanism (nut), 16 Nm

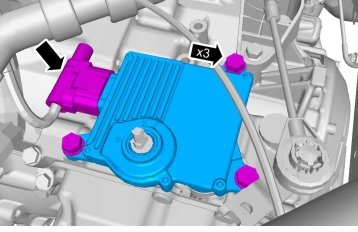

Torque: M8, 24 Nm





Installation





To install, reverse the removal procedure.

Order and download appropriate software. Programming and Relearning

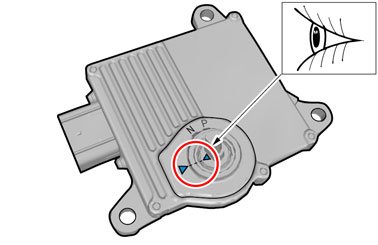

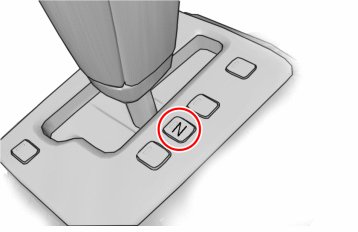

Calibrate position sensor
