Cover, Control System

Operation number: 43748-2

Cover, control system











Removal

Note! Removal steps in this procedure may contain installation details.

Remove the air filter housing Refer to: Air cleaner housing, B5254T5, B6304T4 Service and Repair

Drain oil transmission Refer to: Transaxle oil, B6304T4, TF-80SC AWD, B5254T5, TF-80SC Transaxle Oil





Warning! Be prepared to collect escaping fluid.

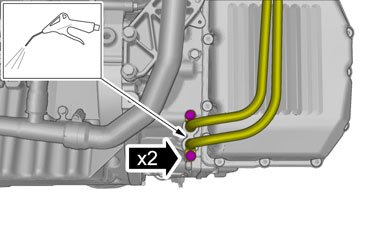

Caution! Make sure that all openings are sealed. Use new blanking caps.

Torque: M6, 10 Nm




Torque: Cover, control system, 13 Nm





Warning! Make sure that the component is clean, free of foreign material and lubricant.

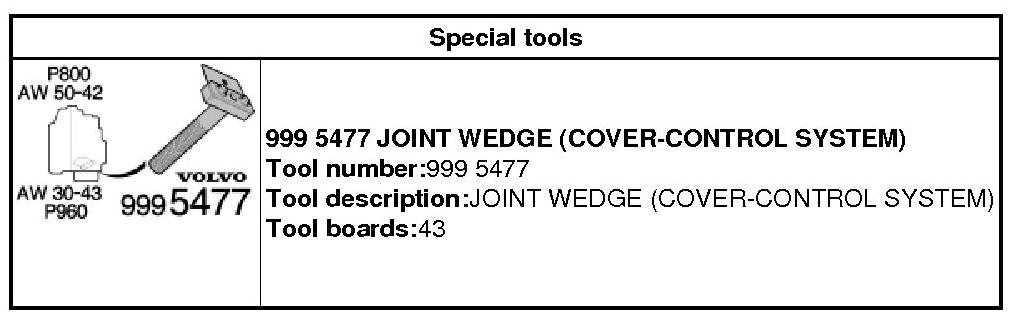

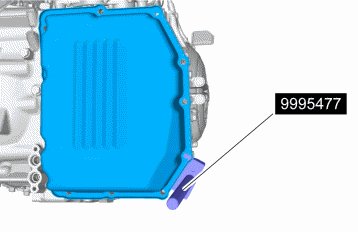

999 5477 JOINT WEDGE 999 5477 Joint Wedge

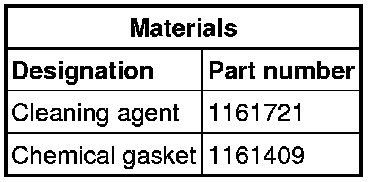

Use: Cleaning agent, 1161721

Installation

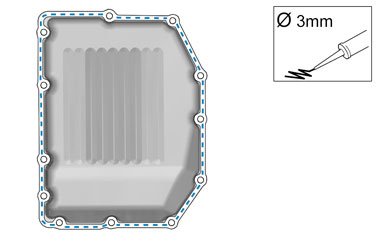

Use: Chemical gasket, 1161409

To install, reverse the removal procedure.

Fill oil transmission Refer to: Transaxle oil, B6304T4, TF-80SC AWD, B5254T5, TF-80SC Transaxle Oil
