Bevel Gear

Operation number: 43330-2

Bevel gear






Removal

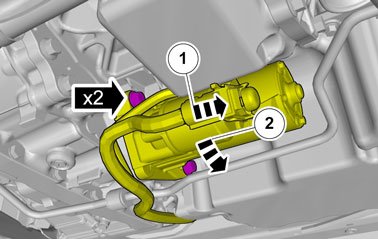

Remove Engine Rear Lower Support Insulator LH Refer to: Engine Rear Lower Support Insulator LH, B6304T4, TF-80SC AWD, B5254T5, TF-80SC Engine Rear Lower Support Insulator LH




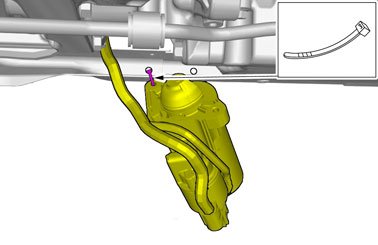

Torque: M10, 50 Nm









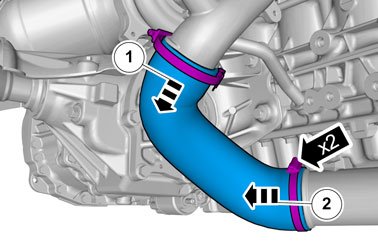

Loosen front propeller shaft joint Refer to: Propeller shaft, B6304T4, TF-80SC AWD Propeller Shaft





Note! Do not loosen the bolts more than 2 turns.

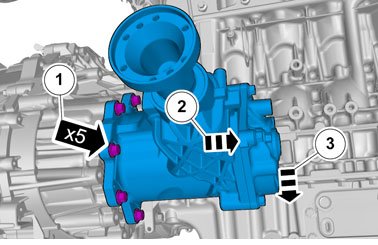

Torque: Bevel gear to transmission, 75 Nm

Remove the right drive shaft Refer to: Drive shaft right, B6304T4, TF-80SC AWD, B5254T5, TF-80SC Drive Shaft Right









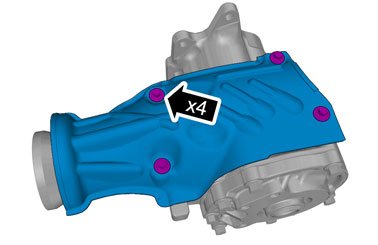

Note! This step is only necessary when installing a new component.

Torque: M6, 10 Nm

Installation

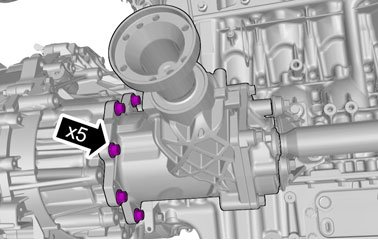

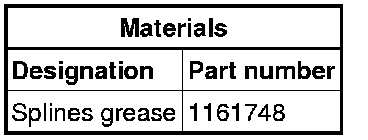

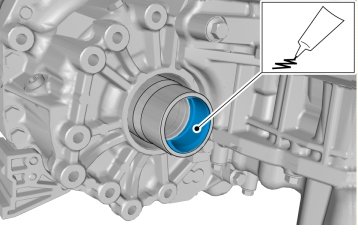

Use: Splines grease, 1161748

Fill with oil
