Checking Oil Level

Operation number: 43738-2

Transmission oil level - checking

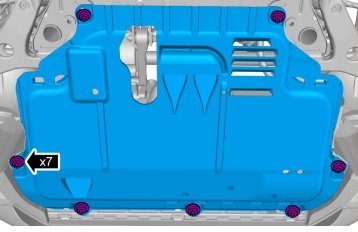

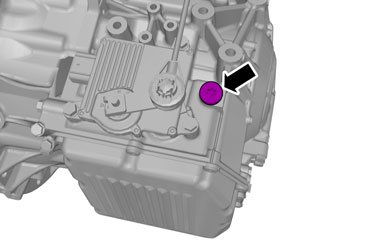

Removal

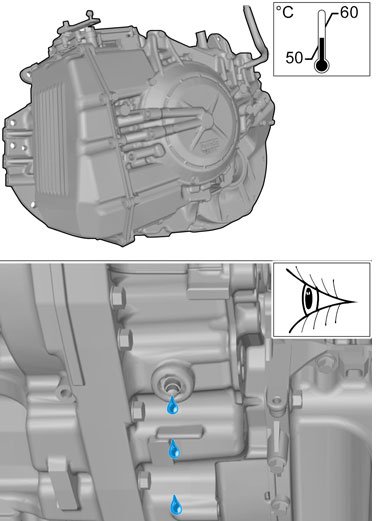

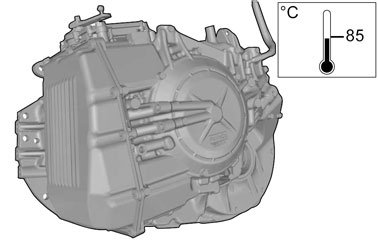

Check Oil temperature





































Warning! Be prepared to collect escaping fluid.

Caution! If transmission fluid escapes it is not an indication that the fluid level is correct.

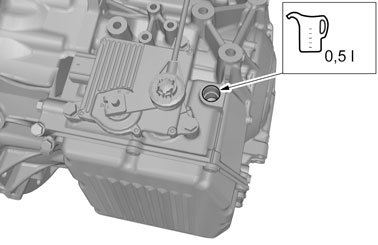

Filling





Warning! Be prepared to collect escaping fluid.

See information about lubricants, transmission Refer to: Lubricant transmission [1][2]Automatic Transmission/Transaxle

Installation





Note! Only tighten the bolt finger tight at this stage.








See information about lubricants, transmission Refer to: Lubricant transmission [1][2]Automatic Transmission/Transaxle





Note! Use a new seal.

Torque: Oil filler plug, gearbox, 35 Nm

Check

















Read out the temperature of the gearbox oil: Diagnostics/Vehicle communication/Advanced/TCM/Parameter read out/Oil temperature









Warning! Hot fluid.

Warning! Be prepared to collect escaping fluid.

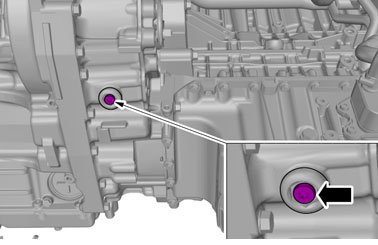

Installation





Note! Use a new seal.

Torque: Oil level plug, transmission, 8 Nm
