Sealing Ring, Torque Converter






Operation number: 43724-2

Sealing ring, torque converter






Removal

Remove transmission Refer to: Transmission, B5254T5, TF-80SC, B6304T4, TF-80SC AWD Transmission

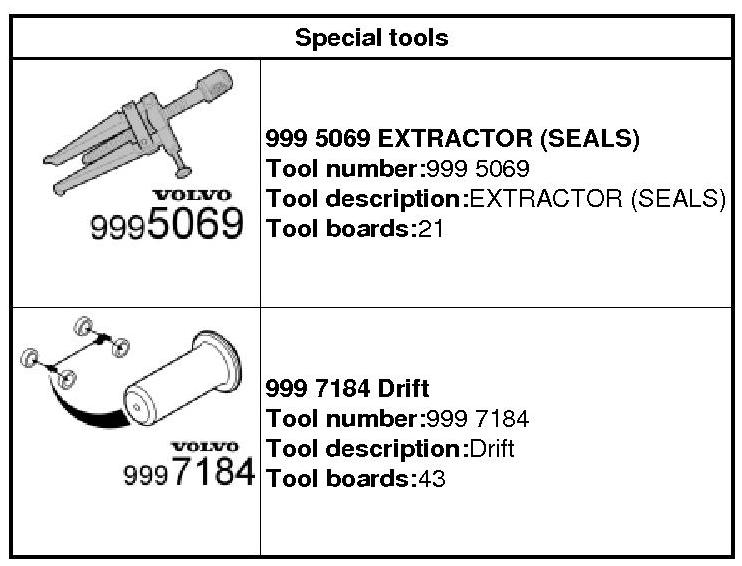

999 5069 EXTRACTOR 999 5069 Extractor




999 7184 Drift 999 7184 Drift

Installation

Install the transmission Refer to: Transmission, B5254T5, TF-80SC, B6304T4, TF-80SC AWD Transmission

To install, reverse the removal procedure.
