Electrical - Battery Analyzer Set-Up Clarification
Title Battery Analyzer set-up clarificationRef No US26090.1.1 en-US
Issuer
Partner 3 US 7510 Volvo Cars North America
Func Group 3110
Func Desc battery
Status Released
Status Date 03-27-2012
Issue Date 03-23-2012
Reference
Attachment

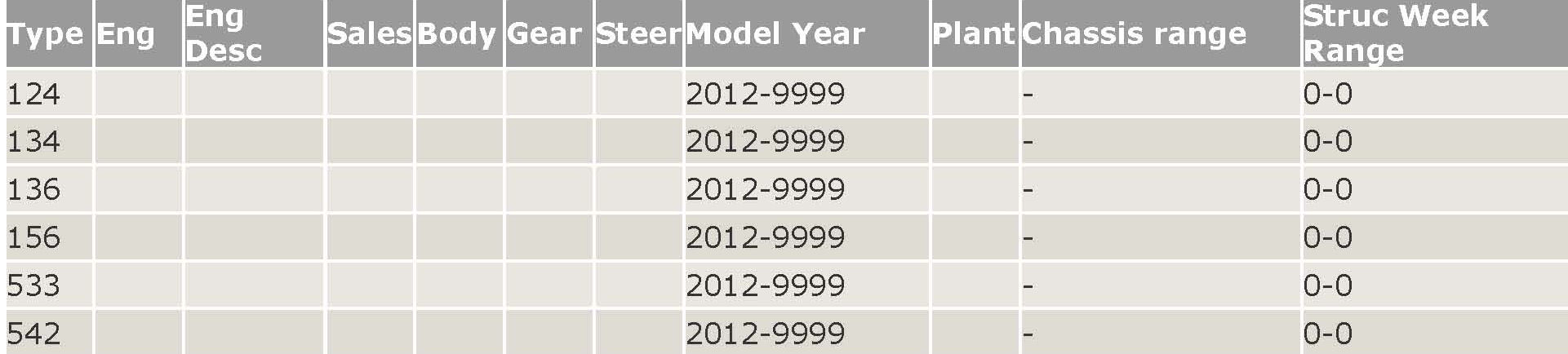

Vehicle Type

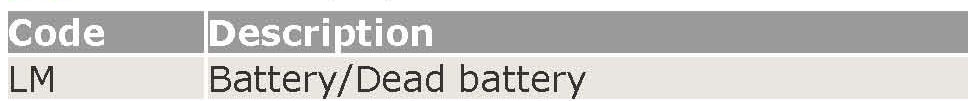

CSC Customer Symptom Codes
DTC Diagnostic Trouble Codes
Text

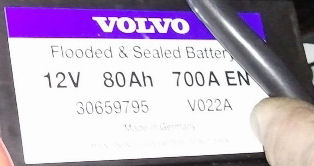

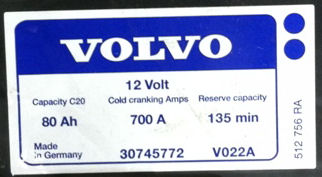

Sealed batteries were recently introduced in production. The label on these batteries use slightly different text than on previous batteries. This can cause confusion when using the Battery Analyzers.
When using the Battery Analyzer 3100:
Choose "BY CCA" even though the term CCA or Cold Cranking Amps is missing on the labels on the new sealed batteries.
When using the Battery Analyzer 3300:
Choose "Regular Liquid", then "EN", then the rating, for example "700A". (This setting applies for all batteries, both the old & new label).

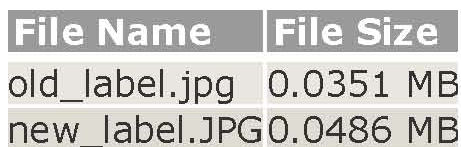

To view TJ attachments continue:
