Home >> Volvo >> 2012 >> S60 R Design AWD L6-3.0L Turbo VIN 90 B6304T4 >> Repair and Diagnosis >> Steering and Suspension >> Wheels and Tires >> Wheel Stud / Lug Nut >> Specifications

Wheel Stud / Lug Nut: Specifications

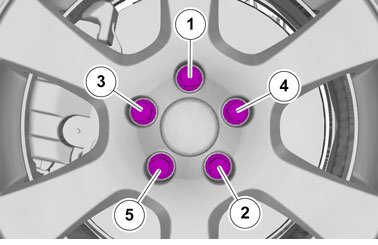

Wheel Lug Nuts





Use Installation Paste 1161397

Stage 1 20 Nm
Stage 2 140 Nm
