Front Wheel Hub and Bearing

Operation number: 77304-277308-2

Wheel bearing front






Removal

Remove the wheel spindle Refer to: Wheel knuckle front, B6304T4, TF-80SC AWD, B5254T5, TF-80SC Service and Repair

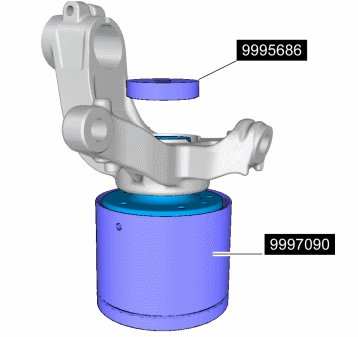

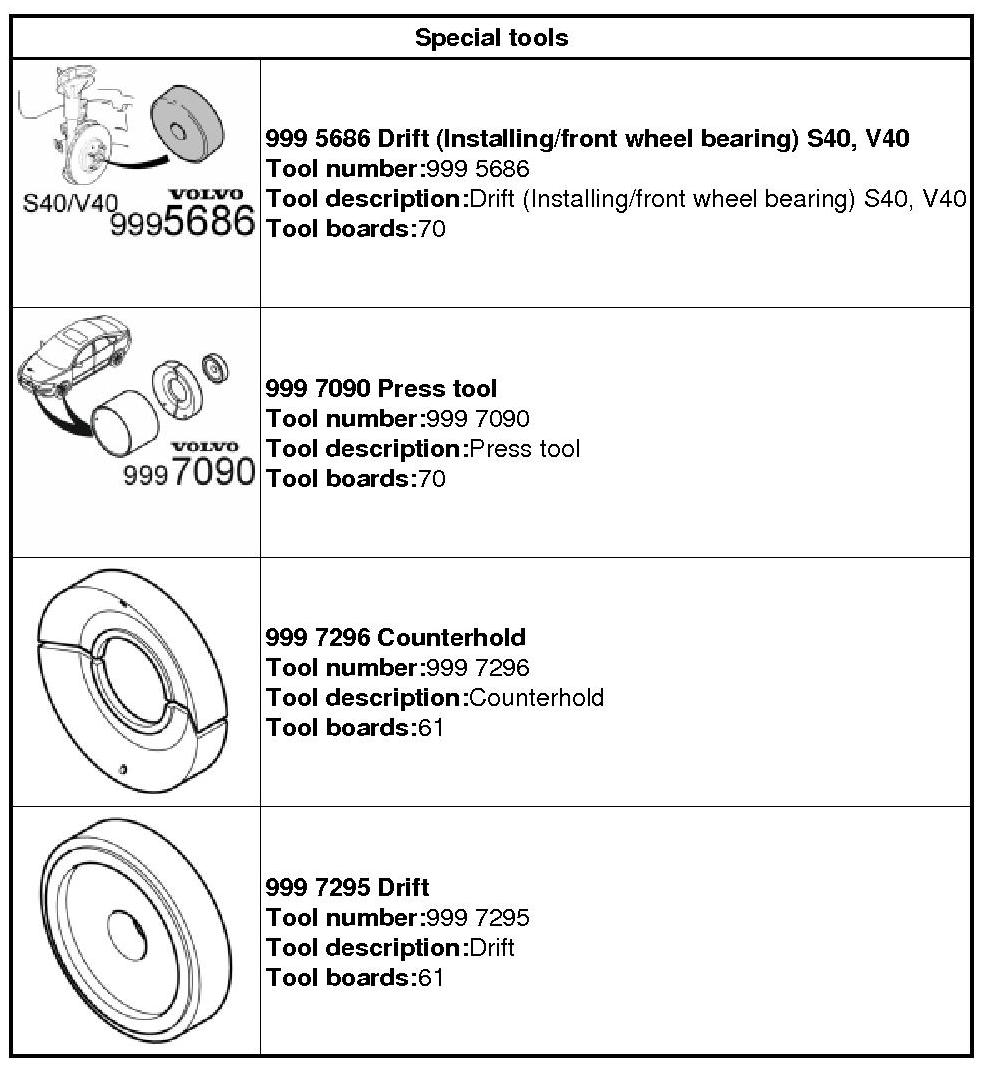

999 5686 Drift 999 5686 Drift 999 7090 Press tool 999 7090 Press Tool

Installation

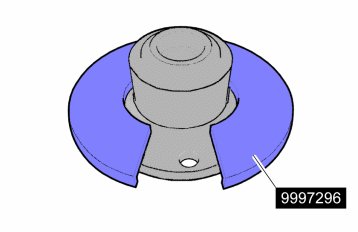

999 7296 Counterhold 999 7296 Counterhold

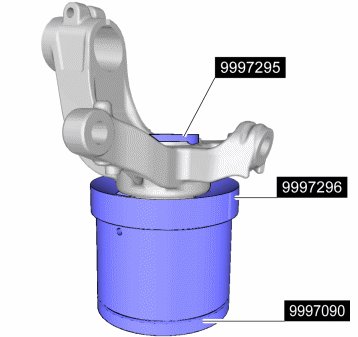

1. 999 7090 Press tool 999 7090 Press Tool
2. 999 7296 Counterhold 999 7296 Counterhold
3. 999 7295 Cover 999 7295 Cover

To install, reverse the removal procedure.
