Signal Specification, Suspension Module (SUM)

Signal specification

Signal specification

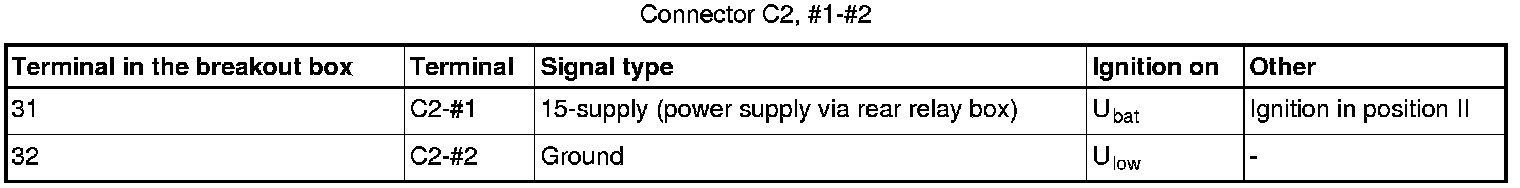

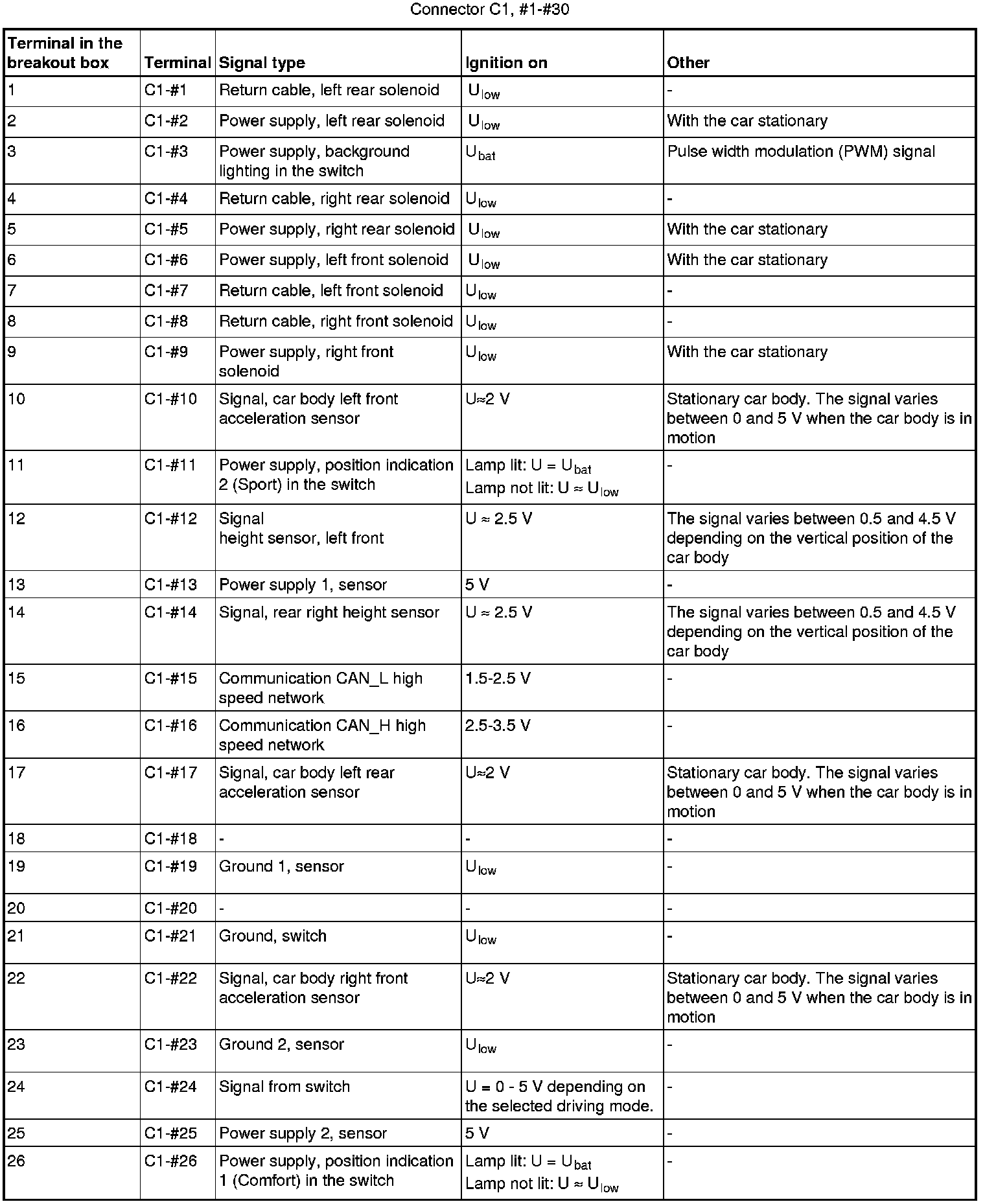

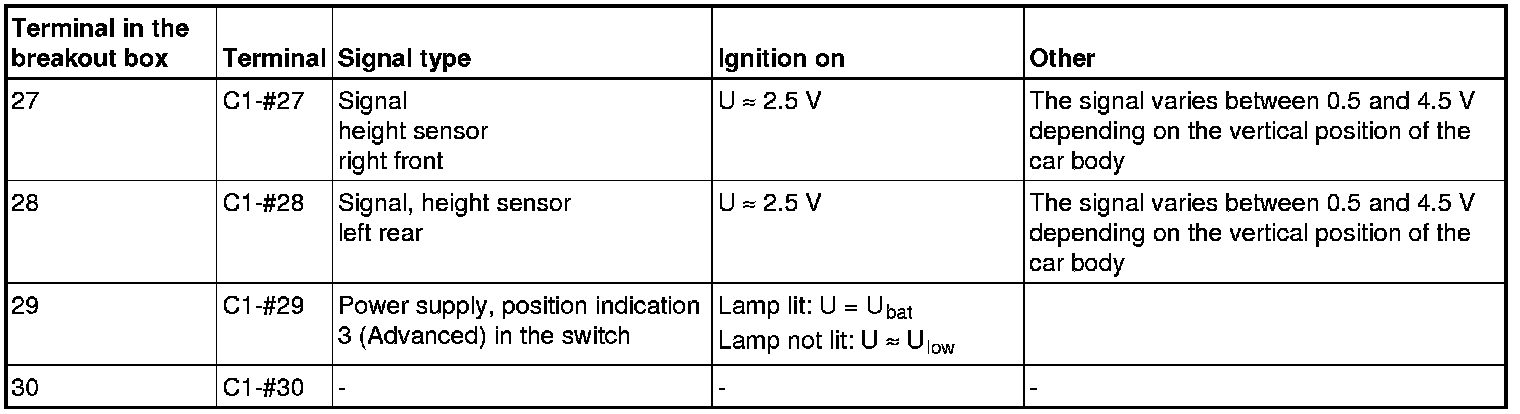

All values given below are between the terminals stated in column 1 (terminal in the breakout box) and terminal C2-#2 (ground). This applies unless otherwise indicated in brackets.

Note! It is important to connect the breakout box and check ground terminals before reading off.
