Stabilizer Link: Service and Repair

Operation number: 76216-2

Rear Stabilizer Bar Link

Removal

Note! Removal steps in this procedure may contain installation details.

Caution! Make sure that the ball joint ball does not rotate.

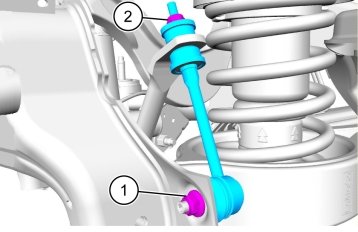

1. Torque: Rear stabilizer bar link to lower stabilizer bar, 60 Nm

2. Torque: Rear stabilizer bar link to stabilizer bar, 15 Nm

Installation

To install, reverse the removal procedure.
