Stabilizer Bushing: Service and Repair

Front Stabilizer Bar Bushing






Removal

Note! Removal steps in this procedure may contain installation details.

Follow instructions for lifting points body frame Refer to: Jacking points body Locations








Use: Unit lift.

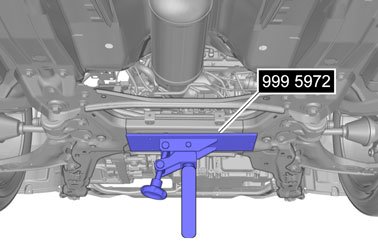

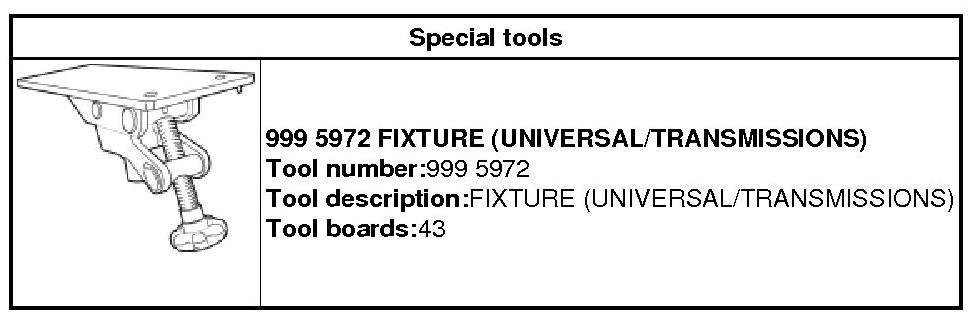

999 5972 FIXTURE 999 5972 Fixture




Torque: Lower arm front to subframe (rear mounting), 175 Nm

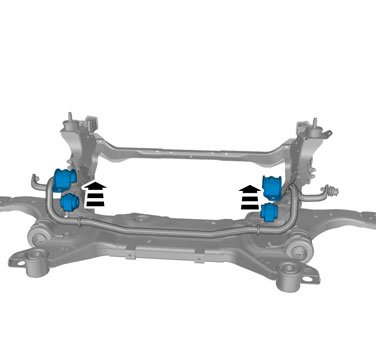

Remove the following items:
1. Torque: M8, 24 Nm

2. Torque: Subframe to chassis (Rear screws) Stage 1: 150 Nm Stage 2: 90 degree









Note! Note the position of each component before removal.

Installation

To install, reverse the removal procedure.

Perform wheel angles check Refer to: Wheel angles, check Service and Repair
