Suspension: Service and Repair

Rear suspension, service position






Removal

Note! Removal steps in this procedure may contain installation details.

Remove rear spring Refer to: Spring, TF-80SC AWD, TF-80SC Rear Spring/Shock Absorber

Vehicles with load-leveling shock absorbers

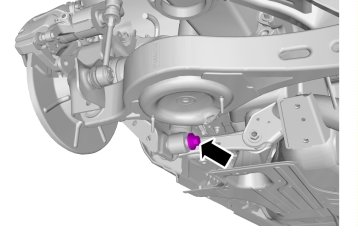

Torque: Rear shock absorber to wheel knuckle (Nivomat), 280 Nm

Vehicles without load-leveling shock absorbers




Torque: Rear shock absorber to wheel knuckle, 175 Nm

All vehicles








Torque: Wheel knuckle rear to body, 180 Nm

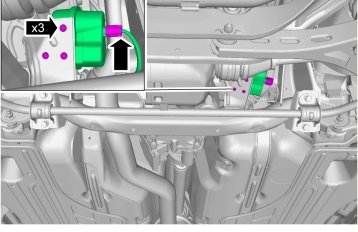

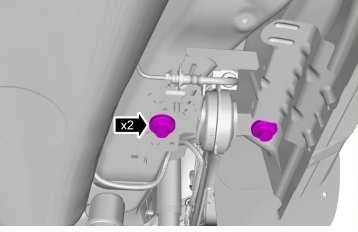

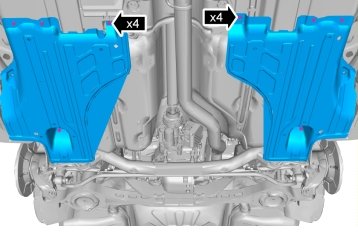

Torque: M8, 24 Nm

Activate service mode

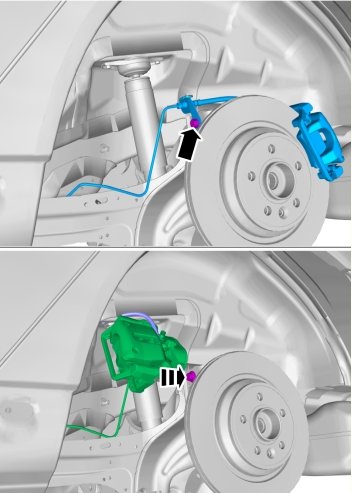

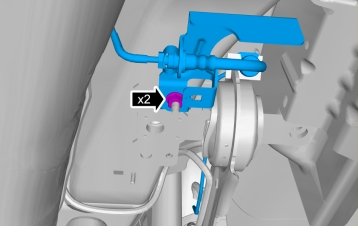

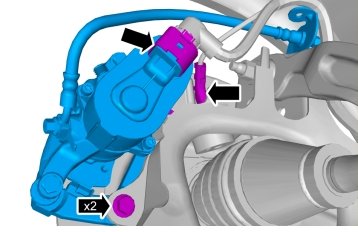

Torque: Mount rear brake caliper, 110 Nm




Torque: Upper arm rear to wheel knuckle, 110 Nm





Note! Note the position of each component before removal.

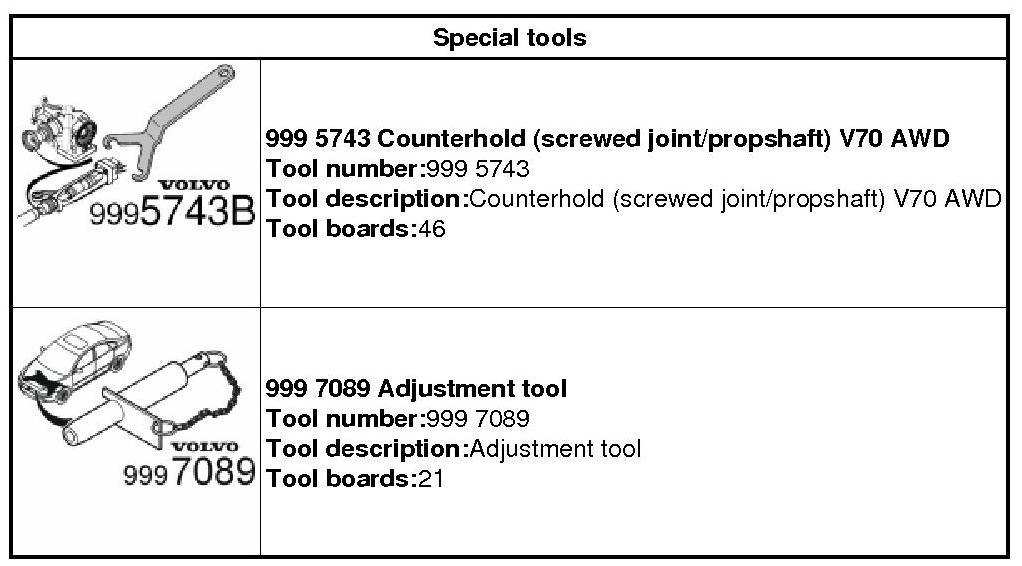

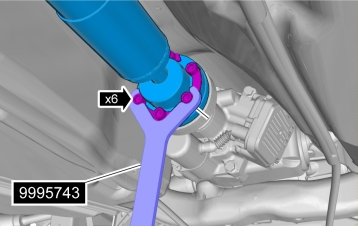

999 5743 Counterhold 999 5743 Counterhold
Torque: Prop shaft, CV joint Stage 1: Crosswise 10 Nm Stage 2: Crosswise 25 Nm

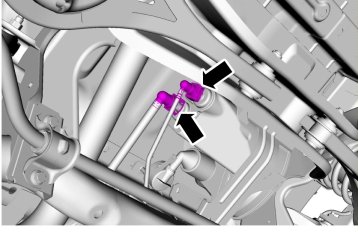

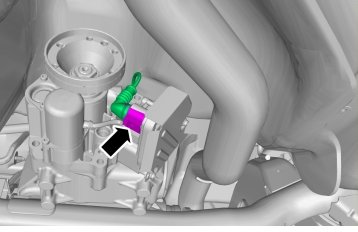

Vehicles with fuel tank leakage monitoring





All vehicles





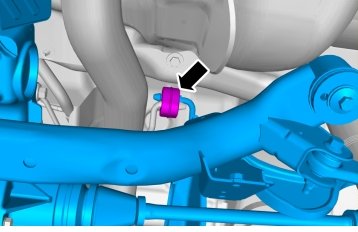

Note! Make sure that no components catch.

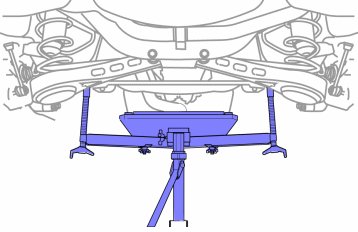

Use: Unit lift.

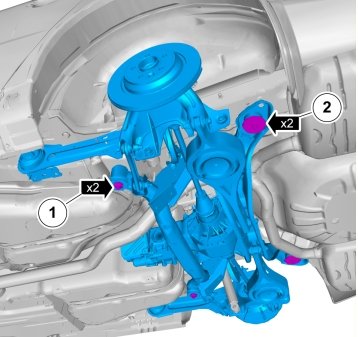

Remove the following items:
1. Torque: Subframe rear to body, 110 Nm

2. Torque: Subframe rear to body, 110 Nm

Installation

Perform normal mode

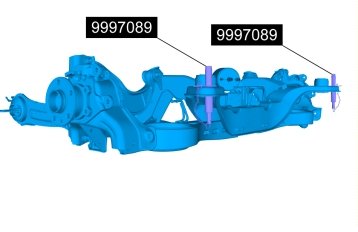

999 7089 Adjustment tool 999 7089 Adjustment Tool

To install, reverse the removal procedure.

Activate service mode
