Rear Upper Arm

Rear upper arm

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Note! Removal steps in this procedure may contain installation details.

Remove the spring. Refer to: Spring, TF-80SC AWD, TF-80SC Rear Spring/Shock Absorber.

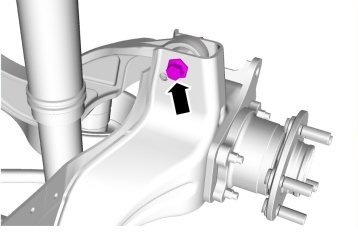

Torque: Upper arm rear to wheel knuckle, 110 Nm

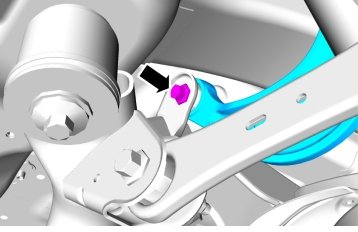

Torque: Upper arm rear to subframe, 110 Nm

Installation


Note! Only tighten the nuts and bolts when the suspension is in the normal drive position.

Check the normal position.

Install the spring. Refer to: Spring, TF-80SC AWD, TF-80SC Rear Spring/Shock Absorber.
