Component Tests and General Diagnostics

Pressure test - Power steering






Removal

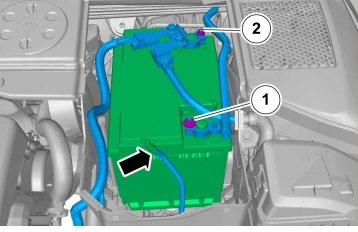

Remove battery Refer to: Battery Removal and Replacement

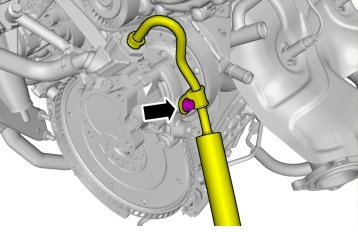

Torque: M6, 10 Nm




Torque: M6, 10 Nm





Warning! Be prepared to collect escaping fluid.

Warning! Power steering fluid is extremely flammable. Make sure that power steering fluid is not spilled over the engine and that the power steering fluid reservoir cap is sealed.

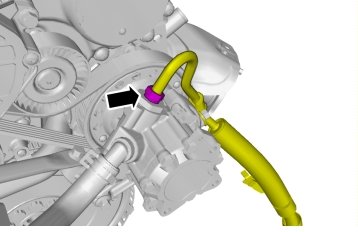

Torque: Pressure line to power steering pump, 30 Nm

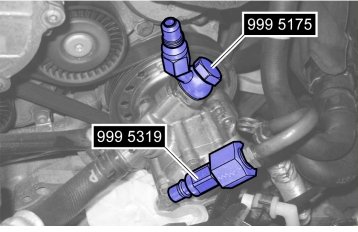

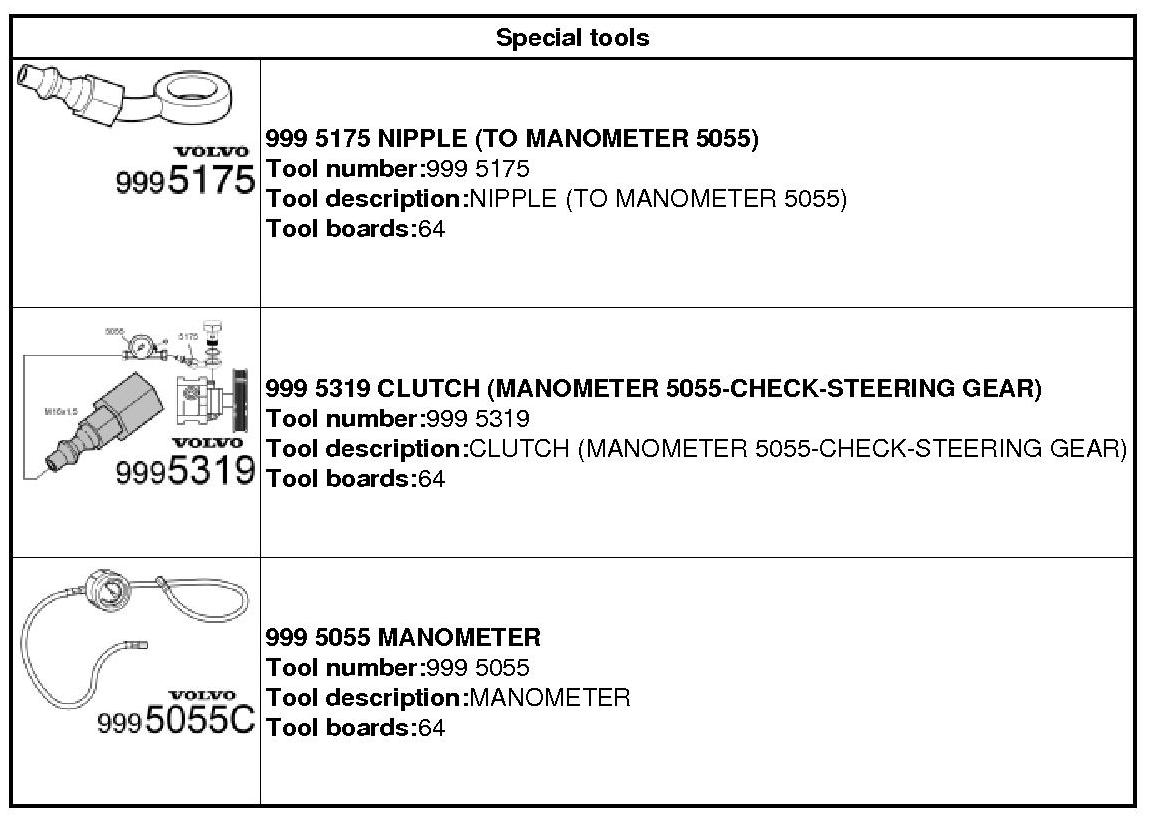

999 5175 NIPPLE 999 5175 Nipple 999 5319 CLUTCH 999 5319 Clutch

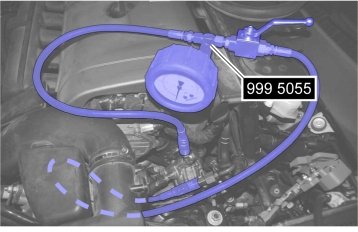

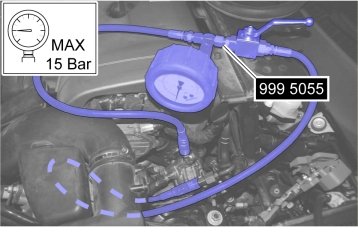

999 5055 Pressure gauge 999 5055 Pressure Gauge

Connecting to power source




Torque: Battery cable for battery, 2.5 Nm

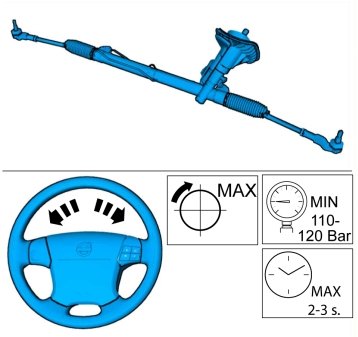

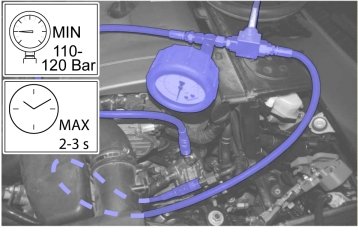

Check





















Disconnecting power source

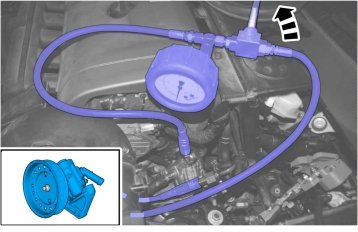

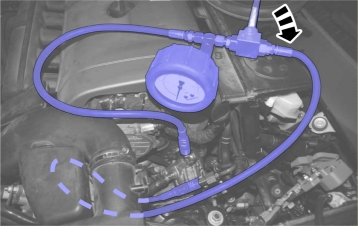

Removal









Installation




Torque: M6, 10 Nm




Torque: Pressure line to power steering pump, 30 Nm




Torque: M6, 10 Nm

Install battery Refer to: Battery Removal and Replacement

Perform power steering system, bleeding air Refer to: Power steering system, bleeding, B6304T4, B5254T5 Service and Repair
