Steering Column: Service and Repair

Operation number: 64134-2

Steering column

Removal

Note! Removal steps in this procedure may contain installation details.

Warning! The steering column may contain pyrotechnic components.

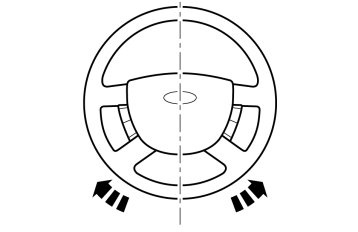

Note! Make sure that the road wheels are in the straight ahead position.

Perform battery disconnecting and connecting. Battery Disconnecting and Connecting





Remove steering wheel module Refer to: Steering wheel control module Service and Repair





Note! Make sure that a new component is installed.

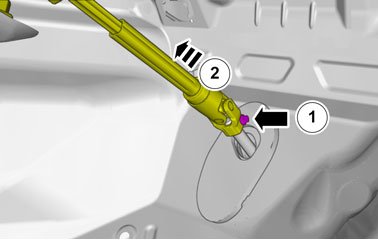

Torque: steering column to steering gear (steering shaft joint), 25 Nm

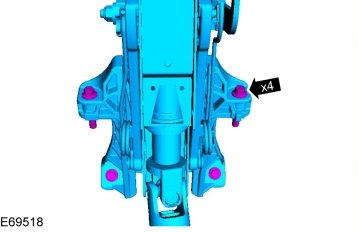

Torque: Steering column to dashboard, 24 Nm








Torque: M6, 10 Nm




Torque: M6, 10 Nm

Installation

To install, reverse the removal procedure.
