Checking Alcohol Analyzing Start Inhibitor, No Message In the Driver Information Module (DIM) After Approved Breath Test

Checking the Alcohol Analyzing Start Inhibitor, no message in the Driver information module (DIM) after approved breath test

Fault-tracing information
The vehicle has no signal from the Alcohol Analyzing Start Inhibitor for various reasons. This may be due to the following:
- The temperature is lower than -20 °C, which can restrict the range of the Alcohol Analyzing Start Inhibitor handheld.
- Radio communication from the Alcohol Analyzing Start Inhibitor handheld to the Remote Receiver Module (RRX) is interrupted or blocked.
- Internal fault in the Alcohol Analyzing Start Inhibitor.
Perform in accordance with:

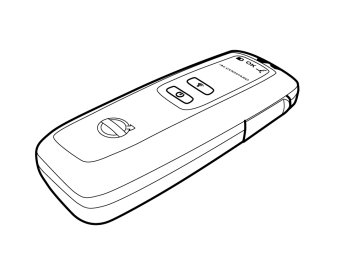

Take an approved breath test and then press the send button on the Alcohol Analyzing Start Inhibitor. If nothing happens, try moving the Alcohol Analyzing Start Inhibitor and pressing the send button.

Note! Once you have taken an approved breath test, you have 30 seconds to send the results to the vehicle.

If a message still does not appear in the Driver information module (DIM) and the vehicle does not start, replace the Alcohol Analyzing Start Inhibitor.

Note! If the fault tracing indicates that the Alcohol Analyzing Start Inhibitor is defective, symptom fault-tracing, "Checking the starting system", must be carried out before replacing the Alcohol Analyzing Start Inhibitor.

When replacing the Alcohol Analyzing Start Inhibitor, carry out the following:
1. Go to the SOFTWARE tab in VIDA and delete the existing software from the Alcohol Analyzing Start Inhibitor.
2. Download new software for the Alcohol Analyzing Start Inhibitor and follow the procedure for matching the Alcohol Analyzing Start Inhibitor.
3. Activate the Alcohol Analyzing Start Inhibitor and also calibrate it, if necessary.
Remedy as necessary.

Other information:
- Symptom fault tracing: Check the start system Checking the Start System
- For activating/calibrating the Alcohol Analyzing Start Inhibitor, use the programme: Volvo Alcoguard Workshop Application
